What are the four main types of drilling?

2024-12-10 Visits:

  Drilling is a crucial process used across various industries such as mining, construction, oil and gas exploration, and environmental studies. The drilling method chosen depends on the nature of the material and the purpose of the project. Below, we explore four primary types of drilling techniques—each offering distinct benefits and applications.

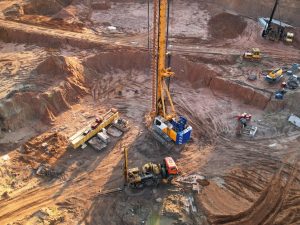

  Deep foundation machine. Drilling rig and Pile driver at construction site. Pile driven into ground by vibrating hydraulic hammer. Foundations construction work. Ground drilling and Piling Contractor.


  1. Percussion Drilling


  Also known as hammer drilling, percussion drilling is widely employed when breaking through tough materials like rock and concrete. It involves the repetitive pounding of a drill bit by a hammer mechanism, often powered by pneumatic or hydraulic systems.


  How Percussion Drilling Works:


  - The drill bit is positioned at the target site, and a hammering mechanism strikes the bit repeatedly.


  - As the bit rotates, it fractures the material into small fragments, which are then flushed out using air or water.


  - This process continues until the desired depth is reached.


  Applications of Percussion Drilling:


  - Mining: Commonly used to create blast holes for explosives in mining operations.


  - Construction: Suitable for drilling into rock and concrete, especially for foundation anchoring and other structural requirements.


  2. Rotary Drilling


  Rotary drilling is one of the most versatile techniques, suitable for a variety of materials, from soft soil to hard rock. It relies on the continuous rotation of a drill bit, which grinds or cuts through the material to create a hole.


  How Rotary Drilling Works:


  - The drill bit, connected to a rotating drill pipe, is placed at the drilling site.


  - As the bit rotates, it penetrates the material, creating a hole.


  - A drilling fluid (usually water or mud) circulates during the process to cool the bit, remove debris, and stabilize the hole.


  Applications of Rotary Drilling:


  - Oil and Gas Exploration: This is the go-to method for drilling oil and gas wells.


  - Geotechnical Investigations: Used to collect soil and rock samples for geological or engineering studies.


  3. Directional Drilling


  In situations where drilling a straight-line hole is impractical, directional drilling comes into play. This advanced technique allows drillers to guide the bit along a curved or angled path, making it ideal for reaching hard-to-access areas or drilling around obstacles.


  How Directional Drilling Works:


  - The drill bit is oriented in the desired direction at the start.


  - Specialized tools, such as downhole motors and sensors for real-time adjustments, help control the trajectory as drilling progresses.


  - Measurements while drilling (MWD) provide data, enabling the drillers to fine-tune the direction to meet project goals.


  Applications of Directional Drilling:


  - Oil and Gas Production: Often used to extract resources from beneath obstacles or in unconventional reservoirs.


  - Underground Utilities: Helps install pipelines, cables, and conduits with minimal surface disruption.


  4. Auger Drilling


  Auger drilling is primarily used for shallow drilling in soft materials like soil or sediment. It is a go-to method for environmental sampling and shallow foundation installations.


  How Auger Drilling Works:


  - The auger bit, resembling a large helical screw, is rotated into the material.


  - As the auger turns, it lifts the material to the surface for sampling or disposal.


  - When the desired depth is reached, the auger is removed along with the sample for analysis.


  Applications of Auger Drilling:


  - Environmental Studies: Frequently used to collect soil and sediment samples for environmental assessments.


  - Shallow Foundations: Employed in construction projects requiring shallow foundation work, such as building supports.


  The choice of drilling technique plays a vital role in the success of any drilling project. Percussion drilling excels in hard material penetration, rotary drilling offers versatility across a wide range of terrains, directional drilling allows for precision in complex paths, and auger drilling is efficient for shallow, soft-material projects. Understanding the strengths and applications of these methods ensures that the right approach is used for the job at hand.
