How does a Jumbo work?

2024-12-10 Visits:

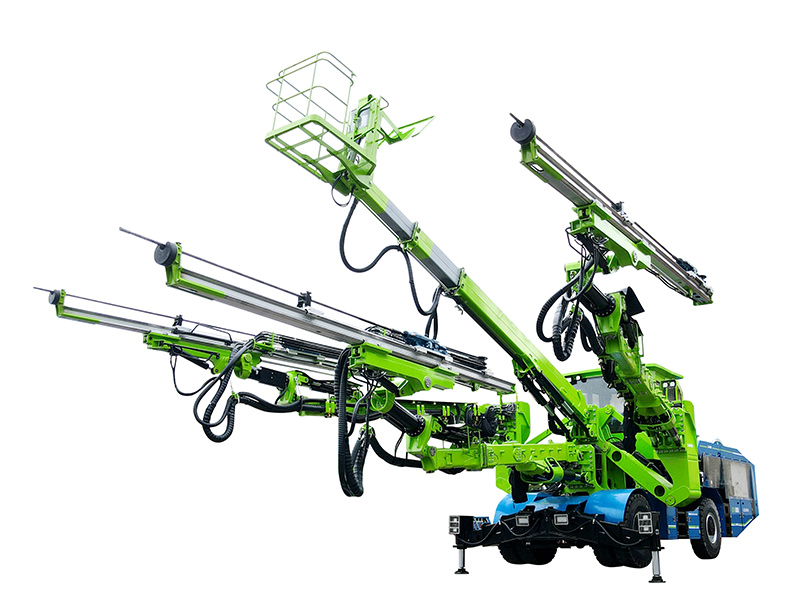

  How does a Jumbo work? A jumbo drill, commonly used in mining and tunneling operations, is a large, versatile machine designed to drill multiple holes in rock surfaces. These holes are often used for blasting or installing bolts and anchors to stabilize tunnels.


  Ⅰ. Structure of a Jumbo Drill


  A jumbo typically consists of:


  - Boom(s): Articulated arms that hold and position the drill heads.


  - Drill heads: These contain the drilling equipment (hydraulic or pneumatic-powered) and can rotate and feed drill bits into the rock.


  - Chassis: A mobile platform that moves the machine into position, usually mounted on wheels or tracks.


  - Control system: Operators use onboard or remote controls to maneuver the drill and adjust its operations.


  - Power system: Powered by diesel engines or electric motors, sometimes with hydraulic systems for drilling.


  Ⅱ. Here is how a "jumbo drill" generally works:


  1. Power System Startup and Transmission


  - Most jumbo drills are powered by electricity or hydraulic systems. In the case of an electric one, after the electric motor starts up, electrical energy will be transmitted through a series of wires and controllers to the drill bit's driving device. For a hydraulically driven one, the hydraulic pump pressurizes the hydraulic oil and then transmits the pressure energy through hydraulic pipelines to the rotating and advancing mechanisms.


  - For example, in a hydraulic jumbo drill used in underground mining, the hydraulic pump increases the pressure of the hydraulic oil to a certain level, and the pressurized oil then drives the hydraulic motor, making the drill bit rotate at high speed.


  2. Rotation of the Drill Bit


  - Once the power is transmitted to the drill bit's rotating mechanism, the drill bit starts to rotate at high speed. The rotational speed varies depending on different working requirements and types of drill bits. The rotating motion is mainly for cutting or crushing hard objects like rocks.


  - For instance, during rock drilling operations, the carbide inserts on the drill bit continuously apply pressure to the rock surface as it rotates, causing the particles on the rock surface to gradually break off. For rocks with higher hardness, higher rotational speeds and greater torque may be required to achieve effective crushing.


  3. Operation of the Advancing System


  - Besides rotation, a jumbo drill also has an advancing system, which is responsible for pushing the drill bit forward along the drilling direction. The magnitude of the advancing force can be adjusted according to geological conditions, drilling depth and other factors.


  - For example, in the construction of building foundations, when deep holes need to be drilled, the advancing system will gradually push the drill bit forward to ensure that the drilled holes can reach the designed depth requirements. The advancing system is usually composed of hydraulic cylinders or screw drive devices, which can precisely control the advancing speed and distance of the drill bit.


  4. Chip Removal Process


  - During the drilling process, a large amount of debris will be generated. Jumbo drills generally have specialized chip removal devices. Some use compressed air to blow the debris out of the drilled holes, while others use flushing fluids (such as water or special drilling mud) to carry the debris out of the drilled holes.


  - For example, in oil exploration drilling, a mud circulation system is used. The mud is delivered to the drill bit through the inside of the drill pipe. After the drill bit cuts the rock and generates debris, the mud will carry the debris back to the ground through the annular space between the drill pipe and the hole wall. After sedimentation and filtration, the mud can be recycled for use again.


  Ⅲ. Operational Steps


  1. Positioning:


  - The jumbo is moved into place in front of the rock face or tunnel wall.


  - The booms are extended and positioned accurately using hydraulic actuators.


  2. Drill Setup:


  - Drill bits are attached to the drill heads.


  - The operator programs the drill pattern (spacing and depth of holes) into the control system, often using digital templates or blueprints.


  3. Drilling:


  - The drill bits rotate and hammer into the rock, powered by hydraulics or pneumatics.


  - Flushing systems (air or water) clear rock debris from the hole to maintain drilling efficiency.


  4. Completion and Movement:


  - Once all holes are drilled, the jumbo retracts its booms and moves to the next location.


  - The holes may then be loaded with explosives for blasting, or used for rock bolt installation to stabilize the tunnel.


  Ⅳ. Features of Modern Jumbo Drills


  - Multi-Boom Design: Some jumbos have multiple booms for drilling several holes simultaneously, increasing productivity.


  - Automated Systems: Modern jumbos may have computerized controls, GPS guidance, and automation for precise drilling patterns.


  - Safety Features: Cameras, sensors, and remote operation capabilities help protect operators in dangerous environments.


  Ⅴ. Applications


  - Mining: Drilling blast holes to extract ore.


  - Tunneling: Creating openings for underground infrastructure such as subways, roads, or water channels.


  - Hydropower Projects: Drilling in dam or reservoir construction.
