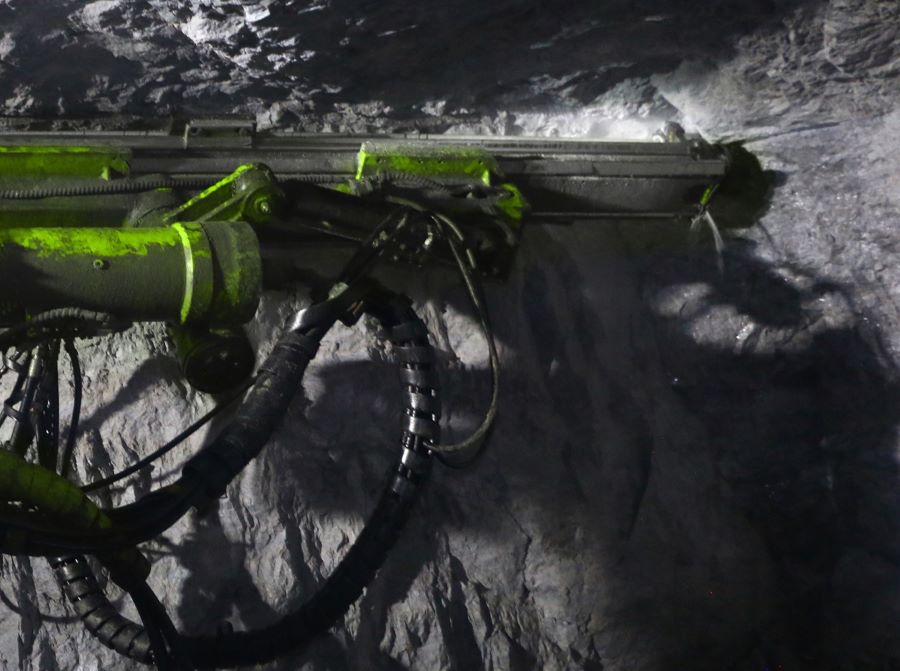

What is  a jumbo drill? A jumbo drill, also known as a drilling jumbo, is a specialized machine used primarily in underground mining and tunneling operations. Its primary purpose is to drill holes into rock surfaces for blasting, rock bolt installation, or other excavation activities.

　　How It Works:

　　1. Positioning:

　　- The jumbo drill is positioned near the area where drilling is required. Its booms are maneuvered to align the drill heads precisely at the desired location.

　　2. Drilling Process:

　　- A rotary drill or percussive drill (depending on the rock hardness) drives the drill bit into the rock surface.

　　- Drill bits are typically made of high-strength steel with tungsten carbide tips for cutting through hard rock.

　　3. Flushing System:

　　- During drilling, water or air is flushed through the drill to cool the bit and remove debris (cuttings) from the hole.

　　4. Hole Depth and Alignment:

　　- The operator monitors the drill depth and alignment to ensure precision. Modern machines may use lasers or GPS for accuracy.

　　5. Multiple Holes:

　　- Once one hole is completed, the boom is repositioned, and the process is repeated to drill multiple holes in a predefined pattern.

　　6. Automation (Optional):

　　- Many modern jumbo drills have automated or semi-automated systems for higher efficiency, reducing manual labor and improving safety.

　　7. Post-Drilling Activities:

　　- The drilled holes are often used for:

　　- Blasting: Explosives are placed in the holes to break the rock for excavation.

　　- Rock Bolting: Bolts are inserted into holes to stabilize tunnel walls and ceilings.

　　Applications:

　　1. Mining: For ore extraction in underground mines.

　　2. Tunneling: To create tunnels for roads, railways, or utilities.

　　3. Cave Stability: Reinforcing natural caves or underground structures.
