Rock bolting is a common technique used in mining, tunneling, and other civil engineering applications to stabilize rock formations and prevent collapses.
How Rock Bolting Works
1. Drilling: Holes are drilled into the rock at specific angles and depths.
2. Inserting Bolts: Steel bolts or rods are placed into these holes.
3. Securing Bolts:
- Grouted Bolts: Cement or resin is injected into the hole to bond the bolt to the rock.
- Mechanically Anchored Bolts: Expandable anchors or frictional devices secure the bolt mechanically.
4. Tensioning: Bolts are tightened to apply a compressive force, ensuring stability.
The primary purposes of rock bolting are:
1. Reinforcement of Rock Mass: Rock bolts act as a support system by binding fractured or unstable rock layers, effectively making the rock mass more cohesive and stable.
2. Preventing Rock Falls: By securing loose or potentially unstable rocks, rock bolts reduce the risk of rock falls in tunnels, mines, or slopes.
3. Load Distribution: Rock bolts help distribute loads evenly across a rock mass, preventing localized stresses that can lead to cracking or collapse.
4. Enhancing Structural Integrity: In construction projects like tunnels, dams, and underground excavations, rock bolting improves the overall stability of the structure by reinforcing the surrounding rock.
5. Cost-Effectiveness: Compared to other support systems, rock bolting is relatively inexpensive and easy to install, making it a preferred choice for stabilizing rock masses.
6. Minimizing Deformations: Rock bolts help control the deformation of rock by holding it in place and preventing excessive movement, which can lead to structural failures.
Common Applications:

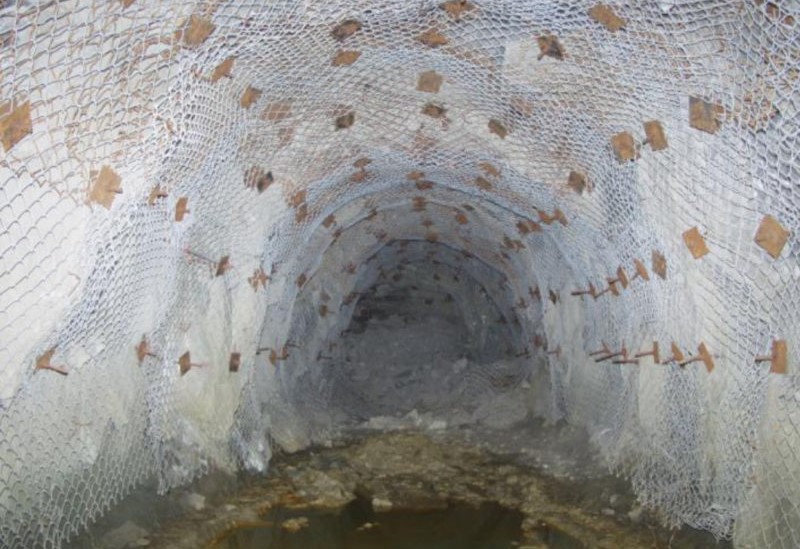

1. Tunnels
2. Underground mines
3. Slopes and retaining walls
4. Foundations in rocky terrain
5. Large caverns or underground storage facilities
By using rock bolting, engineers can ensure safer working environments and enhance the longevity and functionality of infrastructure projects.
