What tool is used to dig tunnels? Tools and Machines for Tunnel Excavation

2025-02-24 Visits:

  What tool is used to dig tunnels? Tunnel construction requires specialized equipment tailored to geological conditions, project scale, and safety requirements. Below are the primary tools and machines used in modern tunneling:


  1. Tunnel Boring Machines (TBMs)

   TBMs are the most advanced and widely used tools for large-scale tunnel projects. These massive, cylindrical machines excavate soil or rock while simultaneously installing precast concrete segments to line the tunnel walls. They are highly efficient in stable ground conditions and minimize surface disruption. Examples include:

   ① Earth Pressure Balance Machines (EPBMs): Ideal for soft soils.

   ② Hard Rock TBMs: Designed for granite, basalt, or other dense rock formations.

   2. Drill-and-Blast Method

   This traditional method uses drilling rigs to create boreholes for explosives. After blasting, excavators and dump trucks remove debris. It’s cost-effective for irregularly shaped tunnels or hard rock environments where TBMs are impractical.

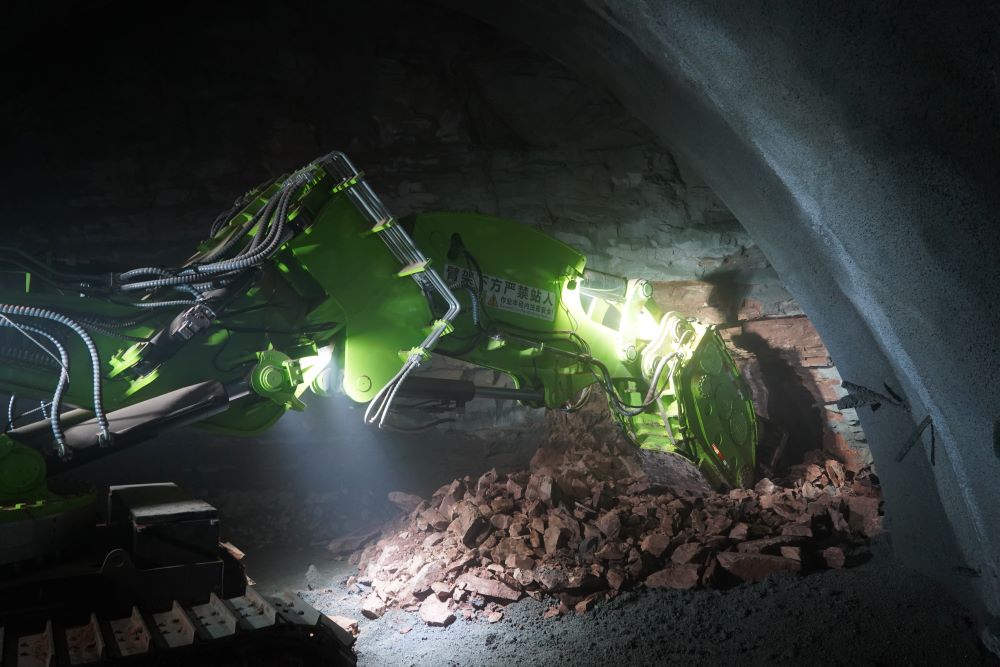

  3. Roadheaders

   These tracked machines with rotating cutter heads are used in softer rock or coal mines. They combine drilling and cutting functions, making them flexible for smaller tunnels or complex geometries.

   4. Shielded TBMs

   A subtype of TBMs equipped with pressurized shields to stabilize unstable ground (e.g., underwater tunnels). They prevent collapses and water ingress during excavation.

   5. Manual and Semi-Mechanical Tools

   For smaller projects or maintenance:

   ① Jackhammers: Break rock in confined spaces.

   ② Hydraulic Excavators: Remove debris after blasting.

  Key Considerations in Tool Selection

   ① Geology: Hard rock requires TBMs or drill-blast, while soft soil demands EPBMs or shields.

   ② Project Scale: TBMs suit long tunnels; roadheaders fit shorter or irregular paths.

   ③ Environmental Impact: TBMs reduce surface vibration compared to blasting.

   For smaller or less intensive projects, alternatives like excavators or even manual tools (e.g., shovels and augers) might be used, but for large-scale tunnel projects, TBMs are the industry standard.
