What machinery is used in tunneling? Tunneling is a complex engineering process that requires specialized machinery to excavate, support, and shape underground passages. Among the most critical equipment is the Tunnel Boring Machine (TBM), which dominates modern tunnel construction due to its efficiency and precision.

   1. Tunnel Boring Machine (TBM)

   The TBM is an integrated system designed for continuous excavation. Key components include:

   • Hard Rock TBMs: Typically open-type or shielded machines that use rotating disc cutters to chip away at solid rock.

   • Soft Ground TBMs: These include Earth Pressure Balance (EPB) TBMs and slurry shield TBMs, which use pressurized chambers—filled either with excavated material (and sometimes foam) or bentonite slurry—to support unstable or water-bearing ground while the tunnel lining is installed.

   • Single vs. Double Shield TBMs: In single shield machines the support is applied by pushing against already installed segments, while double shield TBMs have a split design that can allow continuous tunneling even during segment installation.

  2. Roadheaders:

   These are more flexible, boom-mounted machines equipped with a rotating cutting head that “headers” away the tunnel face. They’re often used in less rigid rock or soil conditions and can be ideal for projects where a more precise, segmented excavation is required.

   3. Supporting Machinery

   ① Hydraulic Pump Stations: Provide pressurized fluid to operate TBMs and auxiliary equipment like grippers or segment erectors.

   ② Conveyor Systems: Transport debris from the cutting face to disposal sites.

   ③ Grouting Machines: Inject cement or chemical grout into gaps between the tunnel lining and surrounding rock to stabilize the structure.

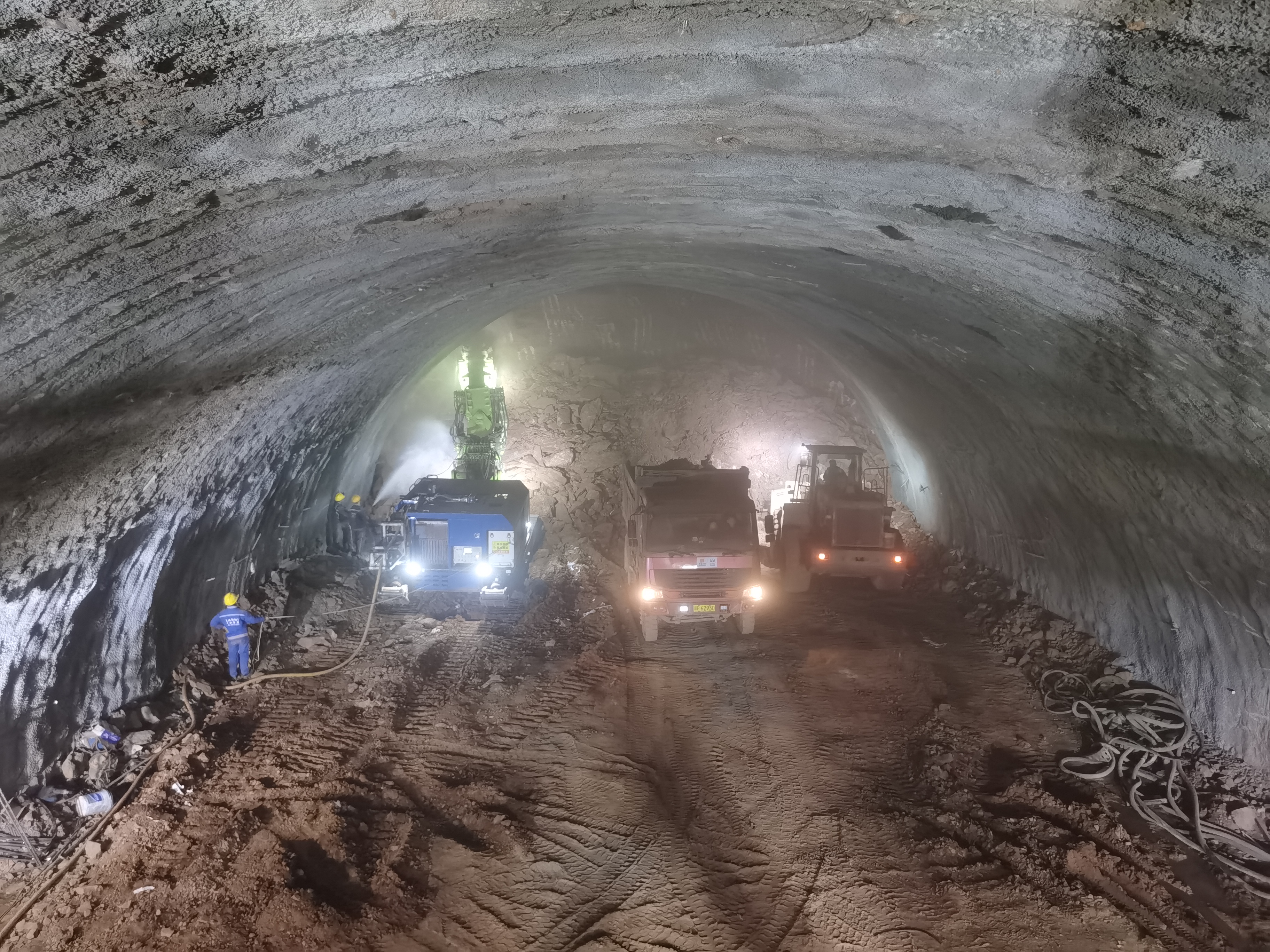

  4. Traditional Methods

   While TBMs dominate large-scale projects, older techniques like drill-and-blast still use:

   ① Jumbo Drills: Multi-boom rigs to drill blast holes.

   ② Explosive Loaders: Insert controlled charges for controlled rock fragmentation.

   ③ Muck Loaders: Load broken rock onto trucks for removal.

  5. Ancillary Equipment

   ① Ventilation Systems: Remove dust and gases, ensuring safe working conditions.

   ② Segment Erectors: Automatically place precast concrete linings inside the tunnel.

   Modern tunneling relies on advanced machinery like TBMs to achieve speed and safety, while auxiliary systems handle material handling and structural stability. Innovations in hydraulic and guidance systems continue to enhance precision, making large-scale underground projects feasible.
