What is a Drill Rig in Mining? What Drill Machines Are Used in Mining?

2025-02-28 Visits:

  What is a Drill Rig in Mining? A drill rig in mining is a specialized machine designed to bore holes into the earth's surface for exploration, resource extraction, or infrastructure installation. These rigs are critical for tasks such as geological sampling, blasting, installing underground utilities, and accessing mineral or energy deposits. Mining drill rigs vary significantly in size, mobility, and functionality depending on the operational requirements.


  What Drill Machines Are Used in Mining? Types of Drill Machines Used in Mining

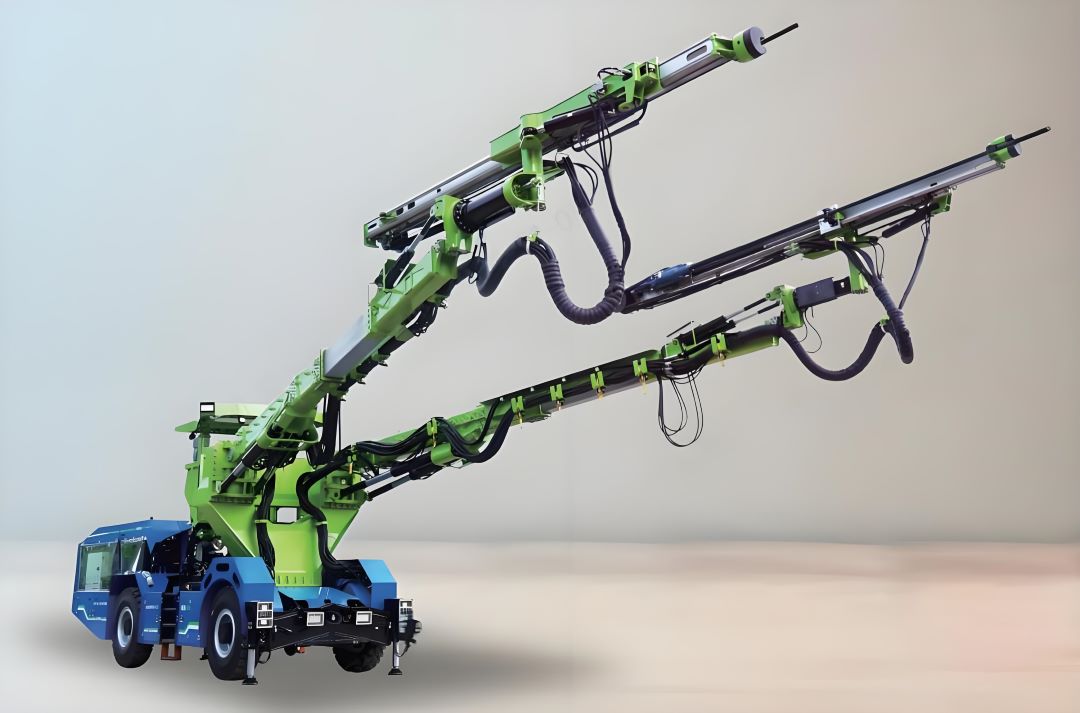

   1. Drilling Jumbos and Specialized Underground Rigs

7570ac83b2648f52e4eb81fb92105ea4 (1).jpg

   In underground mining, drilling jumbos—machines equipped with one or more rock drill carriages—are commonly used for drilling multiple blast holes in confined spaces. Their robust design and mobility make them ideal for the challenging conditions often encountered below ground.

   2. Rotary Drill Rigs

   Commonly used in open-pit mining, these rigs employ a rotating drill bit to penetrate rock layers. They can reach depths exceeding 200 meters and handle hole diameters from 90mm to 200mm. Some models use caterpillar treads for mobility on inclined terrain (up to 25° slopes), while others rely on rubber tires or external transport systems.

   3. Down-the-Hole (DTH) Drill Rigs

   Ideal for hard rock formations, DTH rigs use compressed air to hammer a drill bit into the ground. They are efficient for shallow to medium-depth holes and produce minimal vibration, making them suitable for precise blasting operations.

   4. Reverse Circulation (RC) Drill Rigs

   These rigs use dual-wall drill pipes to collect uncontaminated rock samples. Compressed air circulates cuttings to the surface, enabling rapid sampling for mineral exploration. RC drilling is faster and more efficient than traditional cable-tool methods.

   5. Diamond Core Drill Rigs

   Designed for geological exploration, diamond drills use diamond-embedded bits to extract cylindrical rock cores. This method provides high-quality samples for analyzing mineral composition and structural characteristics.

   6. Raise Bore Rigs (e.g., Alimak Raise Drilling)

   Used to create vertical or inclined shafts (e.g., ventilation or ore passes), these rigs drill a pilot hole first and then ream it to the desired diameter. They are known for their precision and safety in underground mining.

   7. Handheld Drills

   For small-scale or auxiliary tasks, manual drills with HSS (High-Speed Steel) bits or screw-driven mechanisms are employed. These are typically used in narrow tunnels or for installing support structures like rock bolts.

   Applications in Mining

   ① Exploration: Identifying mineral deposits through core sampling.

   ② Blast Hole Drilling: Creating holes for explosives in open-pit mines.

   ③ Infrastructure: Installing underground utilities or ventilation systems.

   ④ Resource Extraction: Drilling wells for oil, gas, or geothermal energy.

   Mining drill rigs are indispensable for modern resource extraction, combining advanced engineering with adaptability to diverse geological conditions. From massive rotary rigs in open-pit mines to compact diamond drills for exploration, these machines ensure efficient and safe operations. For further technical specifications or case studies, refer to sources such as .
