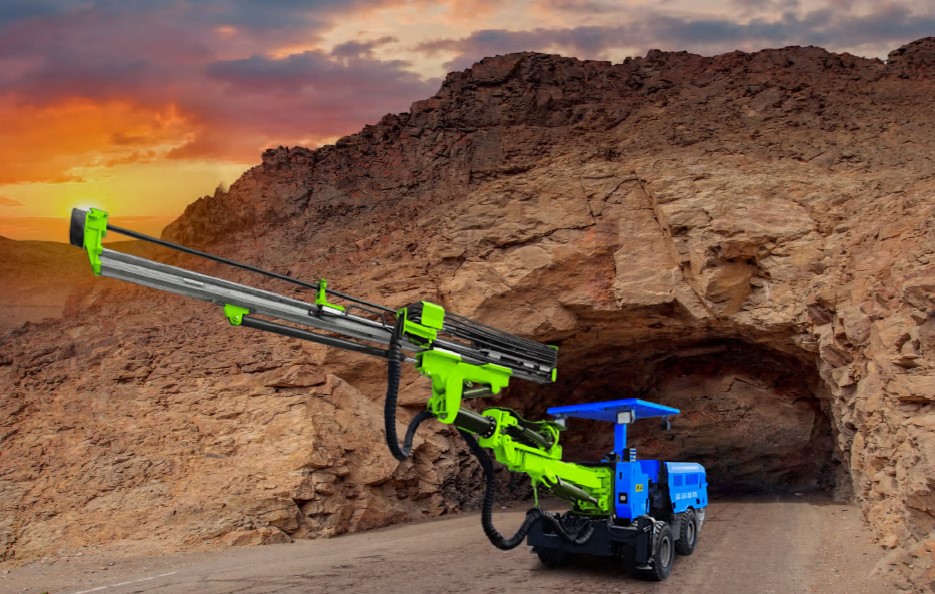

Lanhi CYTJ45 Single boom drilling jumbo is mainly applicable to section 2m×2m-5.2m×5m, the maximum construction range It is suitable for underground non-coal mines, water conservancy projects and so forth that involve tunnels construction.
1. Modular design of the whole machine: the whole machine can be quickly disassembled into 4 functional modules, and the maximum module size after disassembly is 1960mm long x 1300mm wide x 1980mm high (the measured cage size of a mine is 2960 x 1340 x 2130mm), which can be applied to mining application scenarios that require cage transportation, and realize rapid assembly and disassembly of underground transfer.
2. Double-angle leveling jib: smooth movement, high leveling precision, easy to control the parallelism of drilled holes.
3. Simple hydraulic system: electronically controlled program, reducing the hydraulic system logic control elements, thus reducing the occurrence of failures and maintenance costs.
4. High passability of chassis: hydrostatic closed system four-wheel drive chassis, strong driving ability, stepless speed change, smooth and shockless system. The travel brake adopts hydrostatic frictionless brake, the rear axle can swing up and down 7 degrees to avoid single tire easy to leave the ground, the whole width of the machine is 1.3 meters, which can pass through the narrow roadway. Wheel side drive motor with mechanical disengagement device, can release the brake in emergency to facilitate vehicle towing.
5. Convenient driving: electric proportional hydraulic control, simpler operation, more flexible drilling and positioning; with automatic drilling, back up, anti-jamming, stopping impact, etc., it can effectively improve the service life of the rock drill and drilling tools.
6. Dual operating system: with local and wireless remote control dual operation. When the wireless signal is not good, the remote control can automatically frequency hopping to avoid signal interference. If the wireless system is different, it can switch to the wired remote control operation in time, with good reliability.
7. Electric control system: electric proportional hydraulic control, simpler operation, more flexible drilling positioning; with automatic drilling, back, anti-jamming, stopping impact and other functions, effectively improving the service life of the rock drill and drilling tools; digital recording of the number of holes drilled, depth and other data, real-time supervision and evaluation of the construction situation; equipped with self-diagnostic and safety alarm system, real-time monitoring and fault detection, in line with the requirements of the intelligent mine construction specifications.
8. Intelligent: the equipment is reserved for intelligent interfaces, which is convenient for the transformation and upgrading of mine centralized control,remote control, unmanned and intelligent construction.
