How do you waterproof a tunnel? Waterproofing a tunnel is a complex, multi-layered process that must be integrated into the design from the very beginning. Here’s an overview of the typical steps and techniques involved:

  1. Substrate Preparation and Primary Lining

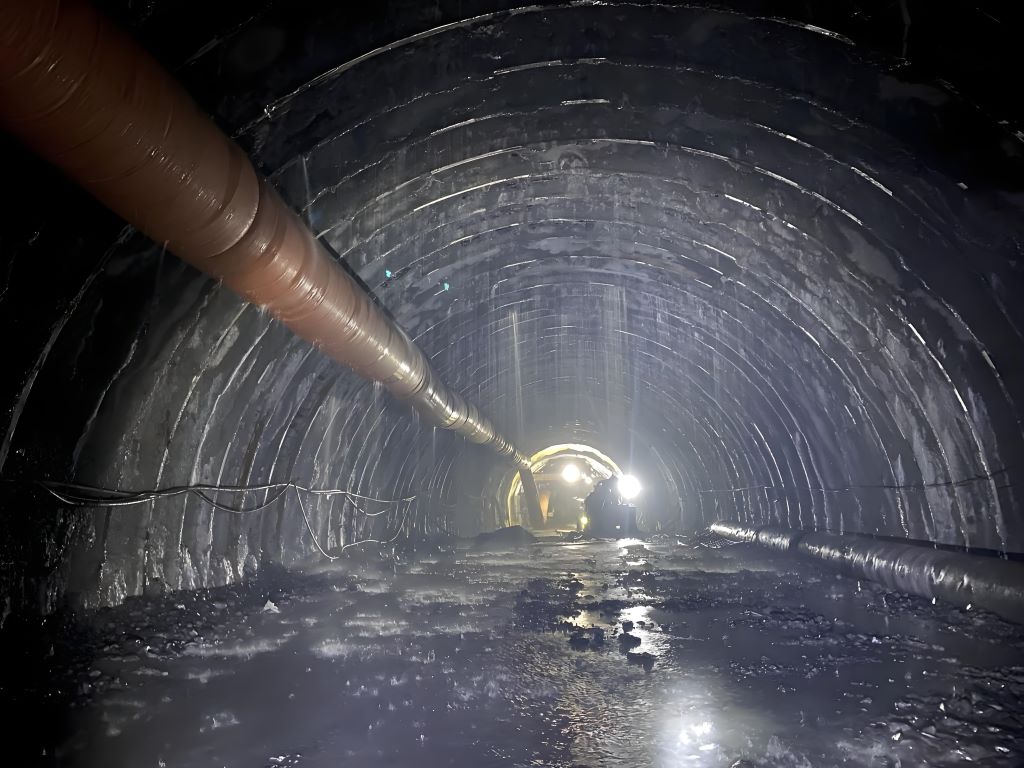

   After excavation, a primary structural lining is installed—often using shotcrete (sprayed concrete) or cast-in-place reinforced concrete. The inner surface must be thoroughly cleaned and smoothed to ensure excellent adhesion for the waterproofing layer that follows.

   2. Application of Waterproofing Membranes

   There are several methods to create the waterproof barrier:

   ①  Sheet Membranes: Pre-fabricated flexible sheets (made of PVC, TPO, or bituminous materials) are applied over the primary lining. These membranes are typically heat-welded to create a continuous, durable barrier against water.

   ②  Liquid-Applied Membranes: These are fluid-applied coatings that cure to form a seamless, crack-bridging layer on the tunnel surface. They’re especially useful for irregular surfaces and can be applied by spraying or brushing.

   ③  Crystalline Waterproofing: In some cases, additives are mixed directly into the concrete. These crystalline admixtures react with moisture to form insoluble crystals within the concrete matrix, effectively making the structure itself waterproof.

  3. Joint Sealing and Injection Techniques

   Tunnels are constructed in segments, so water stops (flexible, impermeable barriers) are installed at the joints to prevent water migration. Additionally, if any minor leaks or cracks are detected after the initial application, engineers can use injection waterproofing—injecting specialized grouts or resins into the cracks—to seal them.

   4. Drainage Systems

   Even with a high-quality waterproofing membrane, some water may still penetrate. Therefore, an effective drainage system is critical. This typically includes:

   ① Drainage Layers: Perforated pipes, geotextiles, or drainage mats are installed behind the membrane to capture any infiltrating water.

   ② Water Management: Sump pumps and waterstops help direct water away from the tunnel structure, ensuring that hydrostatic pressure does not build up.

  5. Quality Assurance and Maintenance

   Regular testing—such as water spray tests, vacuum tests, or visual inspections—is essential to verify the integrity of the waterproofing system. Scheduled maintenance and prompt repairs help ensure that the tunnel remains safe and dry throughout its service life.

   This multi-layered, systematic approach not only protects the tunnel’s structural integrity but also minimizes future maintenance costs and operational downtime.
