Shotcrete is a form of concrete that is pneumatically or hydraulically projected onto surfaces, and in tunneling it’s primarily used to provide immediate support and stabilization to the newly excavated rock or soil walls and ceilings.
What is Shotcrete in Tunneling?

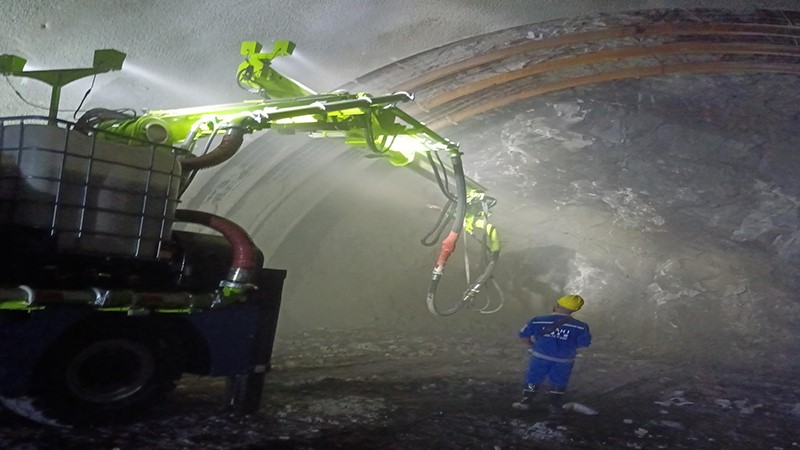

Shotcrete, also known as sprayed concrete, is a construction technique where concrete is pneumatically propelled at high velocity onto excavation surfaces. In tunneling, it serves as a primary structural component for stabilizing and reinforcing the surrounding rock or soil immediately after excavation. The material typically consists of cement, aggregates (sand and gravel), water, and additives like accelerators to enhance early strength .
Purpose of Shotcrete in Tunneling
1. Stabilizing Rock Surfaces
Shotcrete provides immediate support to newly exposed tunnel walls, preventing loose rock fragments from collapsing. By adhering tightly to irregular surfaces, it creates a continuous load-bearing layer that distributes stress and maintains structural integrity .
2. Reducing Deformation
The rapid application of shotcrete minimizes ground movement by "unloading" stress from the surrounding rock. This early intervention helps control deformations and prevents progressive failure of the tunnel structure .
3. Sealing and Weather Protection
Shotcrete acts as a barrier against water infiltration and environmental weathering. It fills cracks and voids, reducing permeability and protecting the tunnel from chemical or physical degradation .
4. Facilitating Composite Support Systems
When combined with steel mesh, rock bolts, or steel arches, shotcrete enhances the overall reinforcement system. It bonds with these elements to form a flexible yet robust composite structure capable of withstanding dynamic loads .
5. Accelerating Construction
Unlike traditional cast-in-place concrete, shotcrete eliminates the need for formwork and allows rapid application. This reduces downtime between excavation and stabilization, improving project efficiency .
These characteristics make shotcrete a critical tool in modern tunneling, ensuring both safety and construction efficiency.
