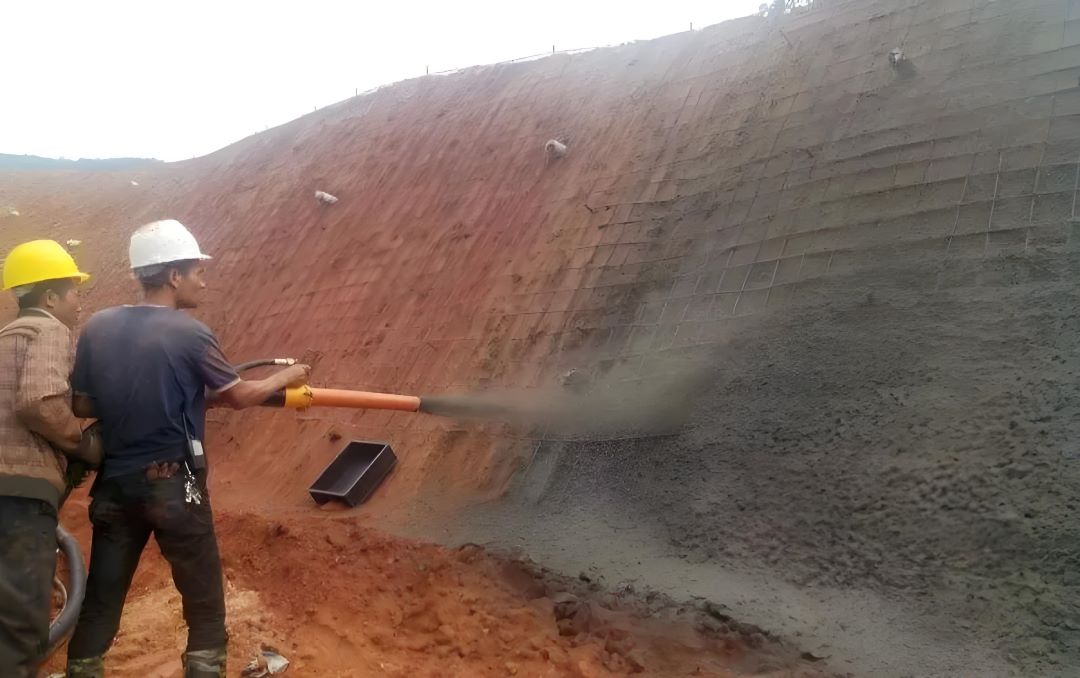

What Are the Different Types of Shotcrete? Shotcrete, a versatile construction material applied pneumatically at high velocity, is categorized based on its mixing process, material composition, and reinforcement methods. Below are the primary types of shotcrete used in engineering and tunneling projects:
1. Dry-Mix Shotcrete
① Process: Dry cement, aggregates (sand and gravel), and additives are premixed and delivered via compressed air to the nozzle, where water is added.
② Advantages:
- Ideal for small-scale projects or remote areas due to portable equipment.
- Faster setup and lower initial costs.
③ shortcoming:
- Higher rebound (material loss during spraying) and dust generation.
- Requires skilled operators to ensure proper water-cement ratio.
2. Wet-Mix Shotcrete
① Process: Fully mixed concrete (including water and additives) is pumped to the nozzle and accelerated with air for projection.
② Advantages:
- Better consistency and reduced rebound (5–15% vs. 20–50% in dry-mix).
- Suitable for large-scale applications with higher productivity.
③ shortcoming:
- Requires specialized pumping equipment.
- Limited flexibility for on-site adjustments.
3. Fiber-Reinforced Shotcrete
① Composition: Steel or synthetic fibers (e.g., polypropylene) are added to the mix to enhance tensile strength and crack resistance.
② Applications:
- Tunnel linings, slope stabilization, and seismic-resistant structures.
- Reduces reliance on traditional steel mesh reinforcement.
③ Types:
- Steel Fiber: Improductility and impact resistance.
- Synthetic Fiber: Prevents plastic shrinkage cracks and improves fire resistance.
4. Polymer-Modified Shotcrete
① Additives: Polymers (e.g., latex or epoxy) are blended into the mix to enhance adhesion, durability, and waterproofing.
② Benefits:
- Improved resistance to chemical corrosion and freeze-thaw cycles.
- Used in wastewater treatment plants or marine environments.
Shotcrete is a method for applying concrete by spraying it onto a surface at high velocity. Among them, Dry-Mix Shotcrete and Wet-Mix Shotcrete are the two main concrete spraying methods.
