What Kind of Concrete Is Used in Tunnels? Main types of concrete used in tunnelling

2025-02-27 Visits:

   What Kind of Concrete Is Used in Tunnels?  Tunnel construction demands specialized concrete to address challenges like structural stability, water resistance, and durability under mechanical stress. Below are the primary types of concrete employed in modern tunneling projects:

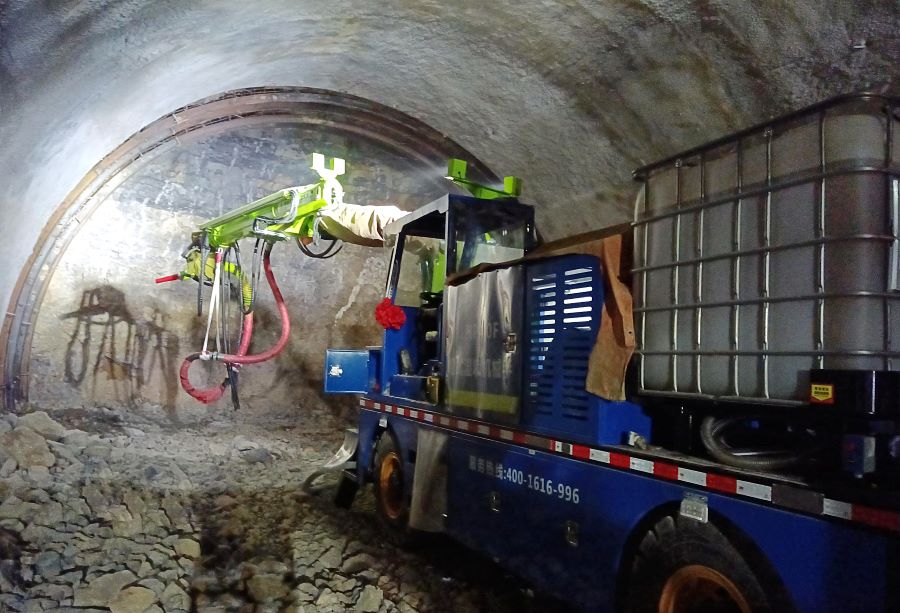

90f945f443491a47a0c0f7de9c51b6c6 拷贝.jpg

  1. Fiber-Reinforced Concrete (FRC)

   Steel or synthetic fibers (e.g., polypropylene) are added to enhance tensile strength and crack resistance. This type is critical in segments prone to dynamic loads, such as earthquake zones or high-traffic tunnels.

   ①  Advantages: Improved durability, reduced cracking, and resistance to spalling.

   ② Improves tensile strength, crack resistance, and impact resistance.

   ③ Commonly used in shotcrete applications and segmental linings.

   2. High-Strength Concrete (HSC)

   With compressive strengths exceeding 60 MPa, HSC is used for permanent linings and load-bearing structures. Its low permeability minimizes water ingress, crucial for underwater or high-moisture tunnels.

   ① Typical Mix: Low water-cement ratio, silica fume, and superplasticizers for workability.

   ② Reduced permeability to water and chemicals.

   ③ Used in tunnel linings, slabs, and other structural components.

  3. Waterproof Concrete

   Incorporating additives like crystalline admixtures or hydrophobic agents, this concrete forms a dense matrix to block water penetration. It is often layered with membranes for extra protection in submerged tunnels.

   ①  Key Feature: Reduces long-term maintenance costs by preventing corrosion of reinforcement.

   ② Essential in tunnels passing through water-bearing ground.

   ③ Used for tunnel linings in conjunction with waterproof membranes.

  4. Self-Compacting Concrete (SCC)

   SCC flows into complex formworks without vibration, ideal for densely reinforced tunnel segments. Its high fluidity ensures uniform density and reduces labor costs.

   ①  Components: High powder content, viscosity-modifying agents, and fine aggregates.

   ② Ensures uniform density and reduces voids.

   ③ Used in cast-in-place linings and structural elements.

   5. Durability-Optimized Concrete

   Tailored for aggressive environments (e.g., saltwater or chemical exposure), this type uses supplementary cementitious materials (SCMs) like fly ash or slag to enhance resistance to sulfates, chlorides, and carbonation.

  6. Precast Segmental Concrete

   ① Used in tunnel boring machine (TBM) methods.

   ② Prefabricated segments are installed to form the tunnel lining.

   ③ High precision and strength, with reinforced concrete or fiber-reinforced concrete.

   The choice of concrete depends on geological conditions, hydrological risks, and project lifespan. Innovations like nano-engineered additives and 3D-printed concrete linings are emerging, promising smarter and more sustainable tunneling solutions.
