What Are the 4 Systems of a Drilling Rig? In-depth look at the four core systems of drilling rig

2025-05-07 Visits:

   What Are the 4 Systems of a Drilling Rig?  A drilling rig is a complex assembly of specialized systems designed to perform specific tasks during oil, gas, or geothermal well construction. While modern rigs incorporate advanced technologies, four core systems form the backbone of their operations. Below is a detailed breakdown of these systems, supported by technical insights from industry sources.

   1. Hoisting System

   The hoisting system is responsible for lifting, lowering, and suspending heavy loads such as drill pipes, casings, and downhole tools. Key components include:

   ① Drawworks: A powerful winch that controls the movement of the drill string.

   ② Crown Block and Traveling Block: Pulley systems that multiply lifting capacity.

   ③ Drill Line: High-strength steel wire ropes supporting the traveling block.

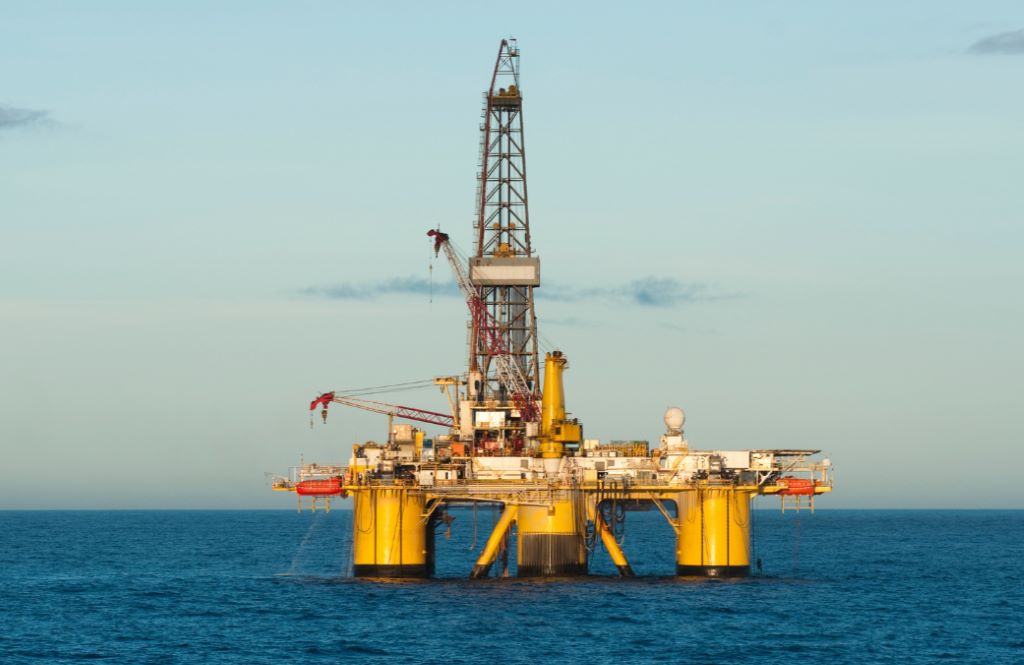

   Advanced rigs like the Ocean Oil 982 semi-submersible platform use automated hoisting mechanisms to enhance safety and efficiency in deepwater operations.

   2. Rotary System

   This system provides rotational force to the drill bit, enabling it to penetrate formations. It includes:

   ① Rotary Table: A mechanical device that turns the drill string (common in traditional rigs).

   ② Top Drive: A modern alternative that rotates the drill string from the top, allowing continuous drilling while adding pipe segments.

   ③ Drill Bit: Specialized cutting tools (e.g., tri-cone or PDC bits) designed for specific rock types.

   Innovations like the modulated bias unit enhance directional control by adjusting hydraulic actuators in sync with bit rotation.

  3. Circulating System

   The circulating system manages drilling fluid (mud) to cool the bit, remove cuttings, and maintain wellbore stability. Components include:

   ① Mud Pumps: High-pressure pumps that circulate fluid through the drill string.

   ② Shale Shakers and Degassers: Equipment to filter and treat returning mud.

   ③ Mud Tanks: Storage and mixing units for fluid additives.

   Modern rigs integrate real-time monitoring systems to track mud volume and detect anomalies like kicks or leaks.

   4、Well Control System

   Designed to prevent blowouts by containing unexpected formation pressures, this safety system is vital for protecting personnel and the environment. It monitors and controls wellbore pressures, intervening when mud weight alone cannot contain formation fluids.

   Key elements are:

   ① Blowout Preventer (BOP): a stack of valves that can seal the well completely.

   ② Choke manifold: allows controlled fluid release to manage pressure during kicks.

   ③ Accumulator unit: stores hydraulic power to close the BOPs instantly if needed.

   A drilling rig’s effectiveness and safety depend on the flawless operation of its hoisting, rotary, circulating, and well control systems. Mastery of these systems—and their relentless technological evolution—underpins efficient reservoir access while safeguarding people and the environment.
