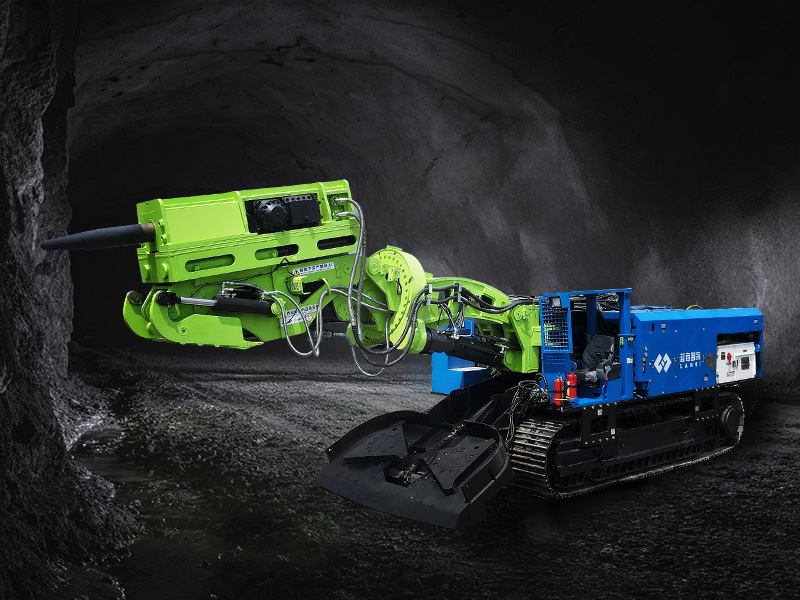

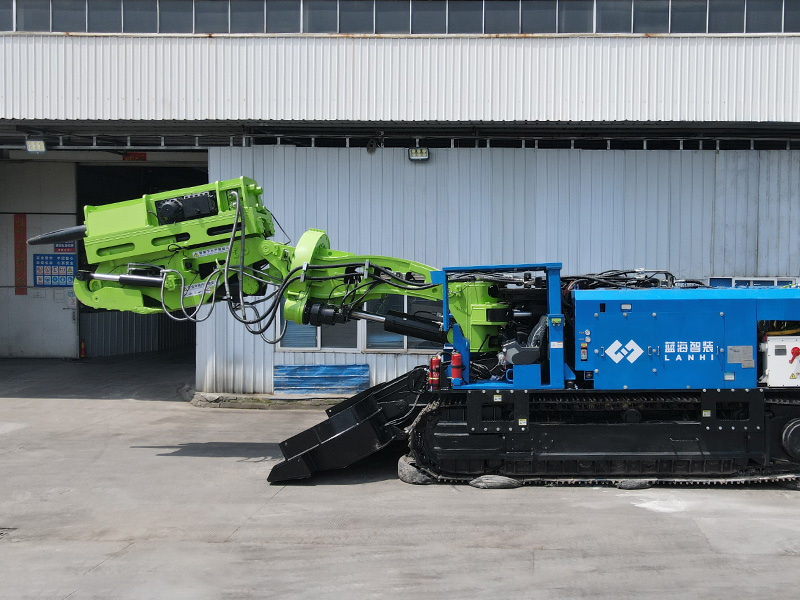

Products Description
◆ Integrated excavation and slag discharge functions in one, with a high degree of mechanization.

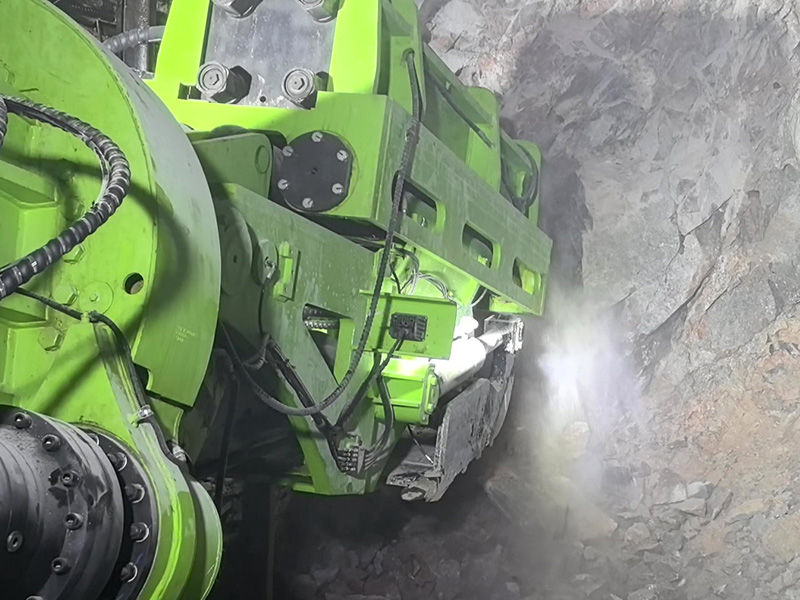

◆ The breaker hammer and high-frequency hammer can be quickly replaced to adapt to the excavation of more rock formations with different hardness.
◆ The maximum rock crushing capacity is 100MPa, and the comprehensive excavation efficiency is not lower than the drilling and blasting method, 15m?/h@70MPa
◆ It has the function of slag removal, no equipment transfer time is required, and efficient discharge of ore is achieved.
◆ Diesel-electric dual drive, electric drive working, diesel drive travel, convenient equipment transfer, no need for separate power connection.
◆ Fast transfer, travel speed 2.5kw/h, less waiting time for transfer.
◆ Simple and compact structure, convenient and intelligent operation.

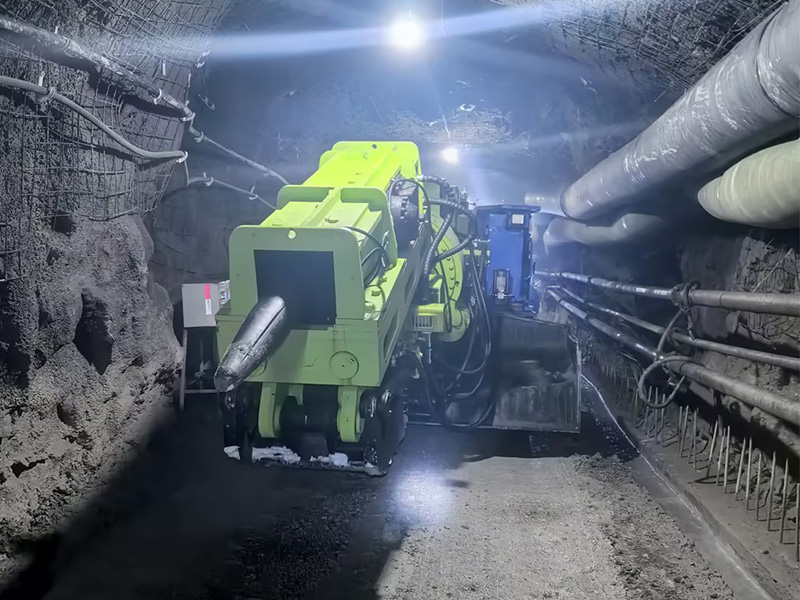

◆ The open cab and lifting design are adapted to the driving and operation requirements of multi-size lanes. It has been certified by FOPS to ensure the safety of construction workers.

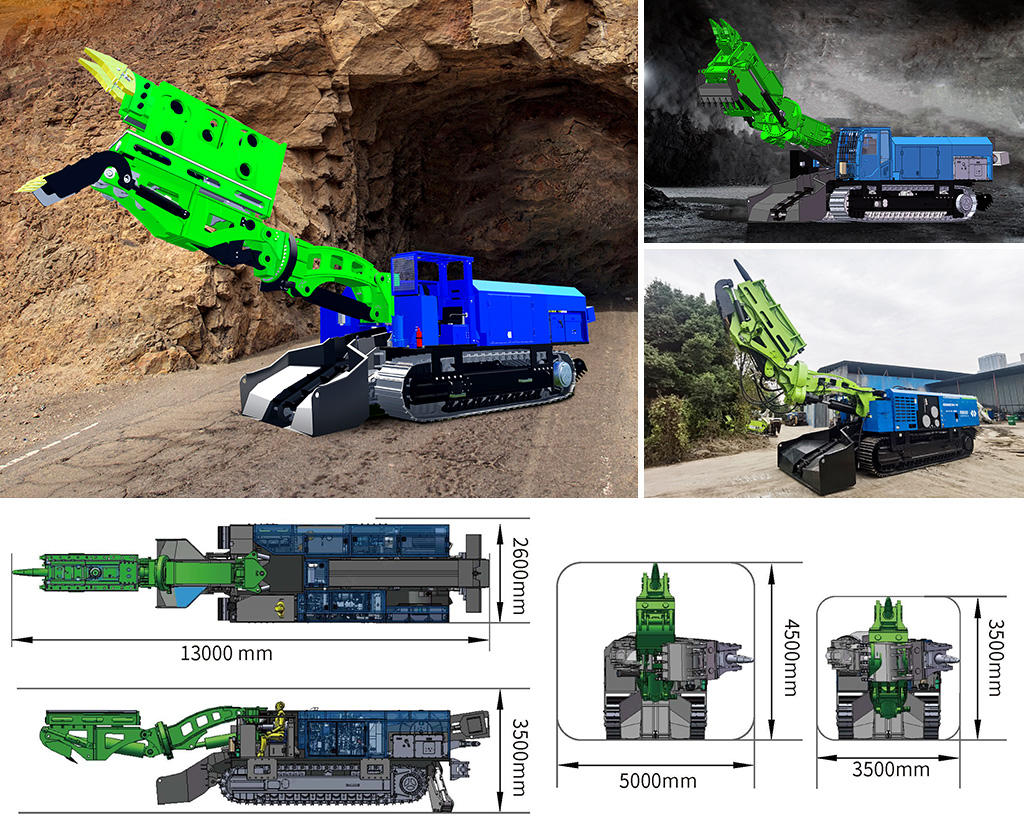

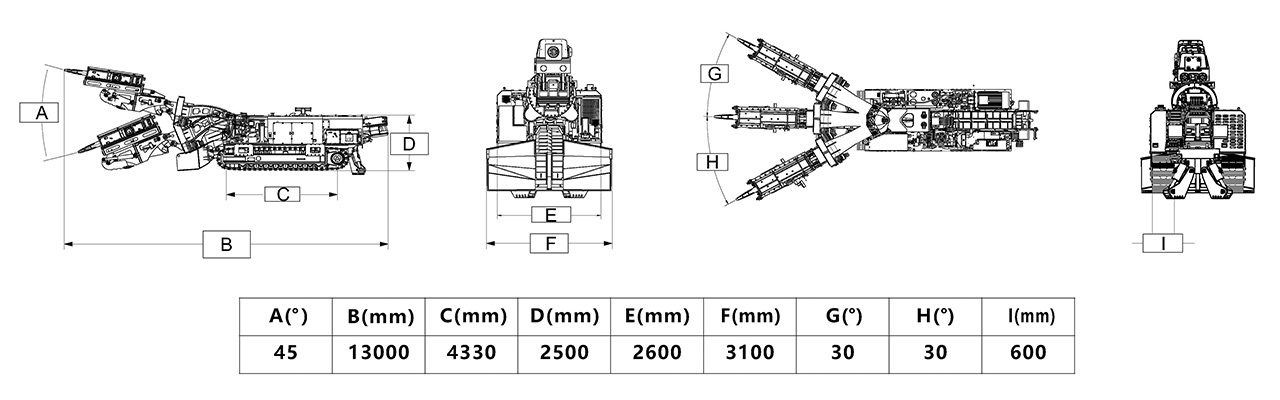

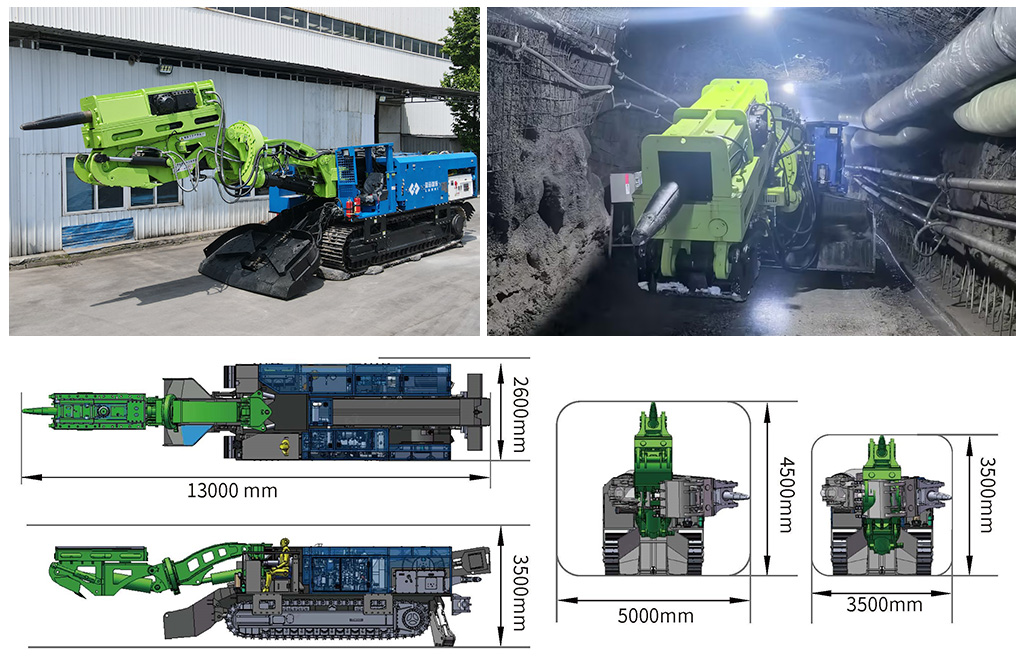

Technical Parameter
| Machine Parameters | Value |
|---|---|
| Machine length | 13000mm |
| Machine width | 2600mm |
| Machine height | 2500mm |
| The pressure of the track on the ground | 0.12MPa |
| Motor rated power | 280KW |
| Maximum driving speed | 2.5km/h |
| Maximum climbing angle | 25° |
| Excavation efficiency | 0-15m³/h(70MPa) |
| Operating voltage | 8kW~14kW |
| Working Pressure | AC1140V |
| Total weight | 65T |
| Operating range | 3.5m ×3.5m～5m×4.5m |
| Slag discharge efficiency | 120m³/h |
