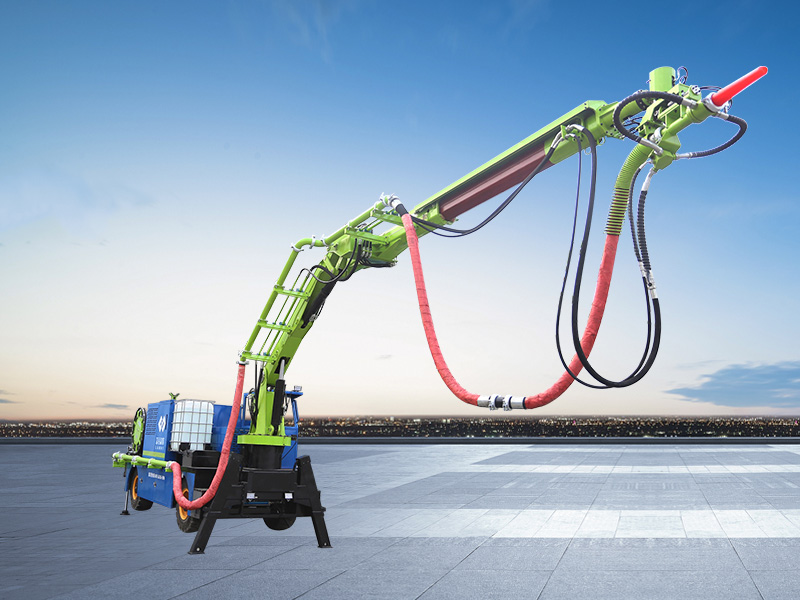

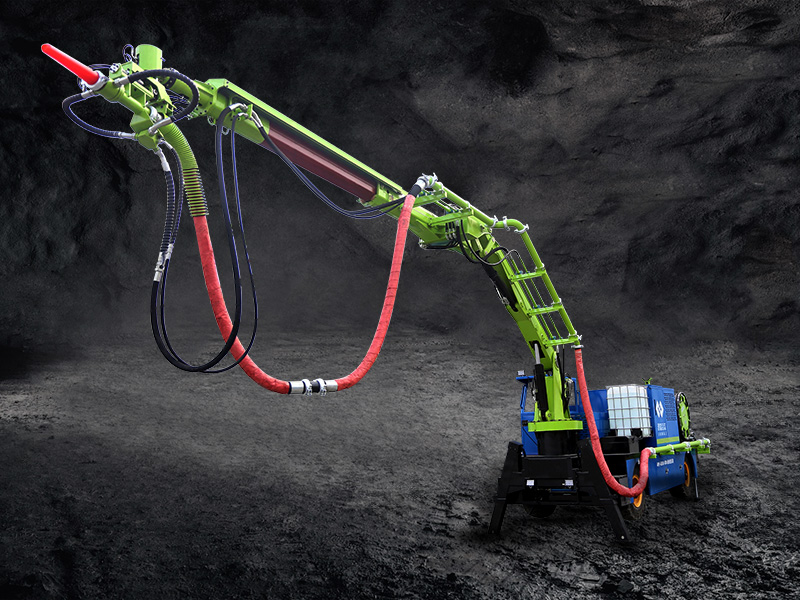

LHP40M Robot Shotcrete Machine

  • Maximum spraying volume:40m³/h
  • Operating range (width × height):26×15m
  • The LHP40M Robot Shotcrete Machine is equipped with a Yunnei engine and is mounted on wheels. The entire structure has been optimized and modernized, resulting in a reduced failure rate. Stable conveying capacity of pumping system,minimizing maintenance expenses.The equipment offers the benefits of a substantial injection volume, minimal pipe blockage, low rebound and reduced dust emissions. The spraying system features wireless remote control operation, facilitating precise control over the movement of the robotic arm.
    Send Inquiry
    Description
    Parameter
    Products Description


    ◆ Maximum Shotcrete Volume: Capable of achieving 40m³/h, with pipes that are resistant to blockage, low rebound,  stable and reliable performance, ensuring high efficiency in shotcreting operations with reduced risk of pipe blockage.


    ◆ Reduce concrete consumption:lt solves the problem that traditional small wet spraying machines cannot meet the needs of concrete spraying in large tunnels, improves construction efficiency, reduces concrete consumption,and effectively guarantees construction quality.


    ◆ Wireless Remote-Controlled Boom: Facilitates precise and convenient operation.

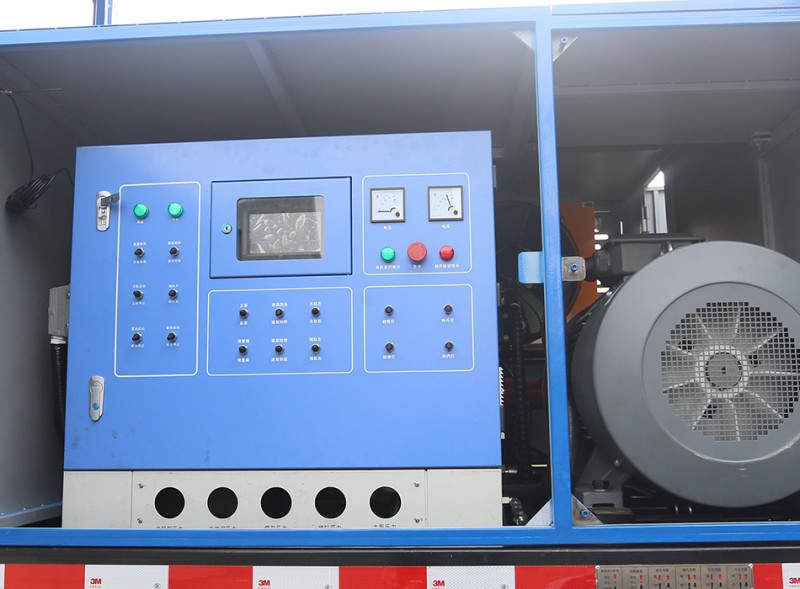

    ◆ Energy Saving and Environmentally Friendly: Dual-power operation (diesel-electric), supporting electric construction and diesel for emergencies.


    ◆ Large-section construction: Features two quick-setting agent tanks with a capacity of 1.5 cubic meters, which can meet the construction volume for large tunnel sections.


    ◆ Flexible Transition: The compact size of the entire machine ensures good flexibility, making it easy to enter and exit construction sites.


    ◆ Low Operating Costs: The entire machine structure has been optimized and upgraded, resulting in low failure rates; high compatibility of parts and consumables leads to lower operating costs.


    Technical Parameter
    Transport dimensions (L × W × H)8340×2700×3250mm
    Total weight16t
    Engine power108kW
    Installed electrical power75kW
    Operating modeElectric construction + diesel-powered emergency
    Control modeWireless remote control
    Operating voltage380V

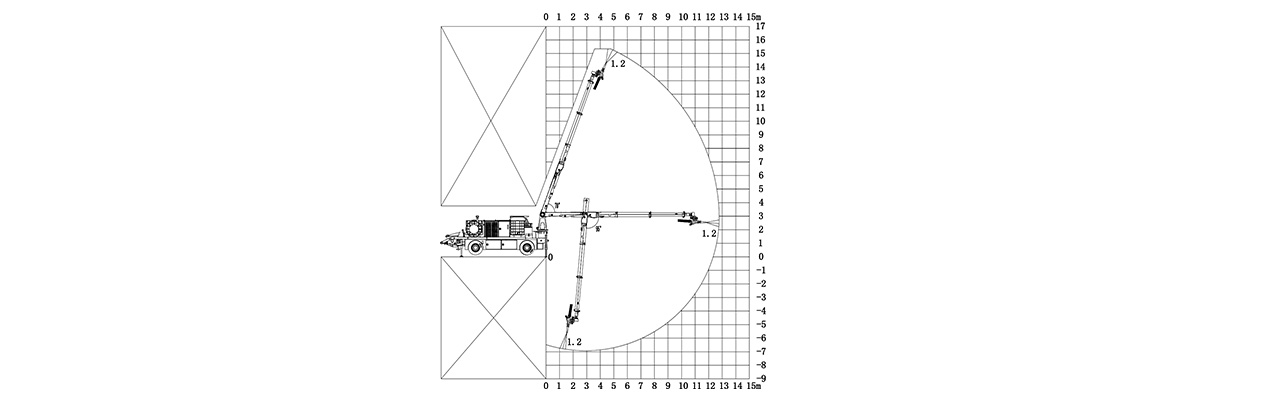

    Operating range (width × height)26×15m
    Chassis formOperating chassis
    Driving modeOne-way driving
    Driving and steering methodsFour-wheel drive, front-wheel steering
    Minimum ground clearance420mm
    Maximum grade29%
    Turning radius10m (two wheels)
    Maximum speed15km/h
    Approach angle/departure angle16°/16°
    Maximum spraying volume40m³/h
    Maximum particle size for spray aggregate25mm
    Hopper capacity0.3m³
    Capacity of quick-setting agent tank1.5m³
    Form of quick-setting agent pumpSqueeze pump
