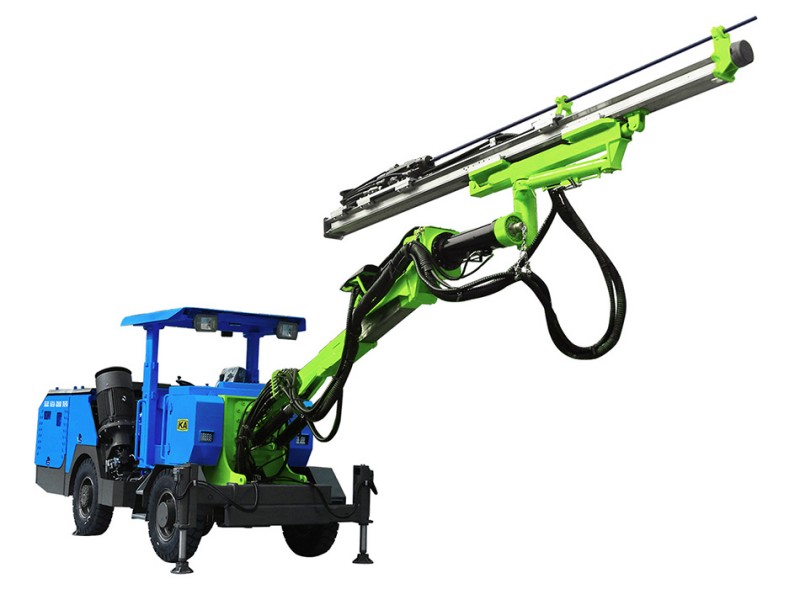

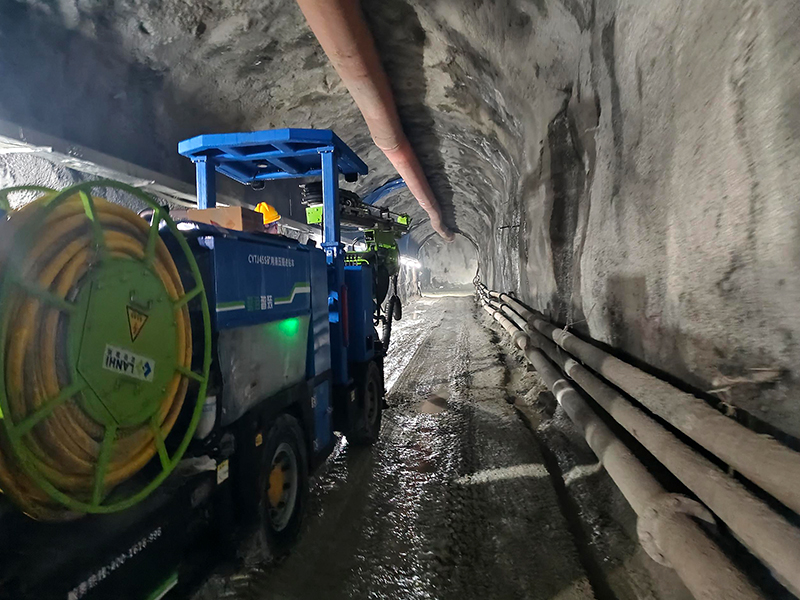

CYTJ45A Single Boom Drilling Jumbo Rigs

  • Operating range (W × H):2.8×2.8m-6.6×6.6m
  • Borehole diameter:32mm-76mm
  • CYTJ45A single booms drilling jumbo rigs are core equipment for drilling and blasting in mines and underground projects. They are mainly suitable for drilling and blasting holes in small tunnels in mines and water conservancy projects. The rigs are equipped with single booms, covering cross sections from 8 m² to 44m². The equipment is also equipped with a wireless operating system, which can be wirelessly controlled and operated, and can drill holes quickly and accurately in tunnels and cave excavations.
    Send Inquiry
    Description
    Parameter
    Products Description



    ◆ Application scope: Suitable for drilling and blasting construction of mines and underground engineering tunnels, drilling length: 3.4m-3.9m. Can drill vertical, inclined and horizontal blasting holes.

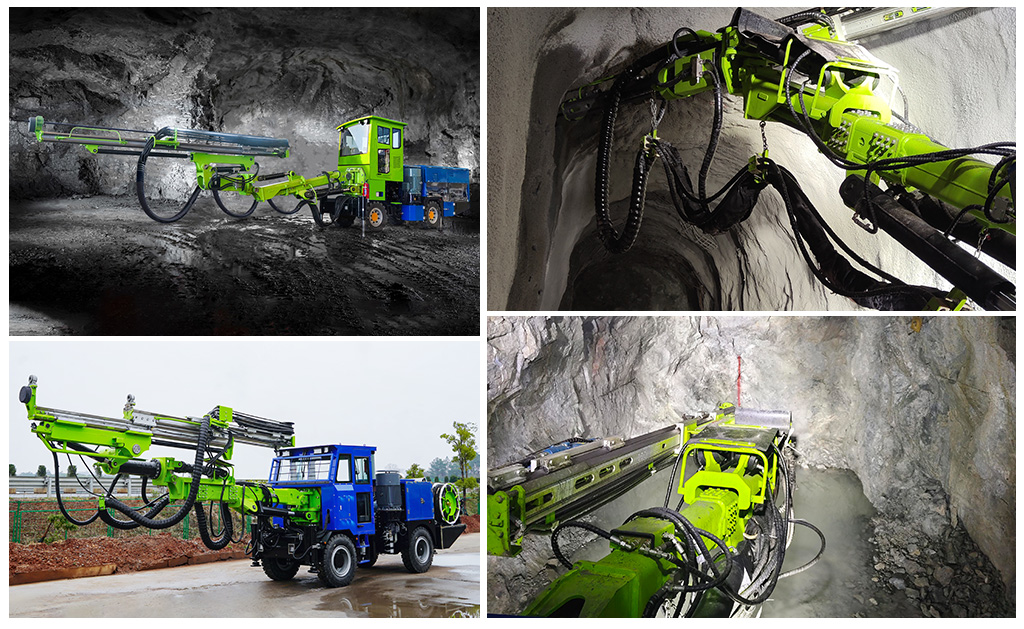

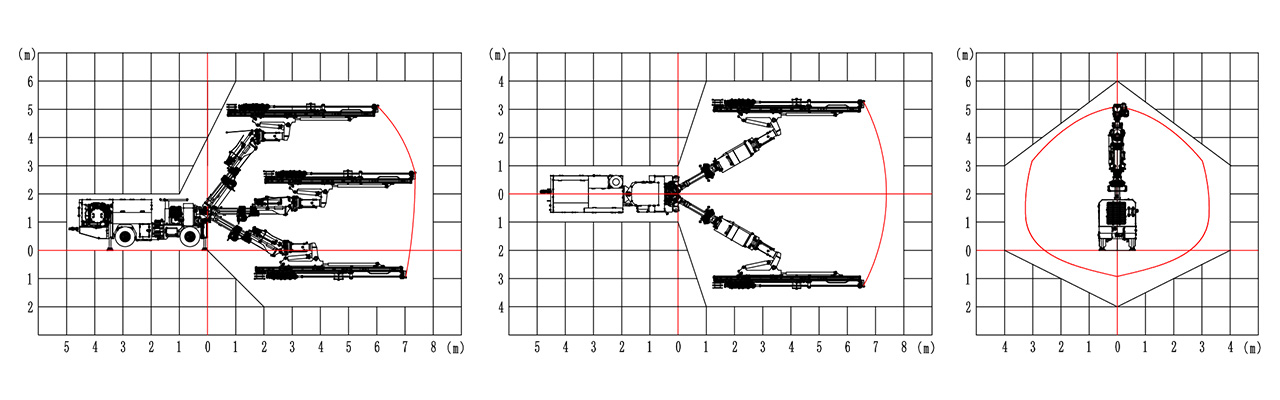

    ◆ Operation scope: It can travel through tunnels with a minimum width of 2.8m and a height of 2.8m, and is suitable for excavation and drilling operations in tunnels with a width of 2.8m to 6.6m and a height of 2.8m to 6.6m.


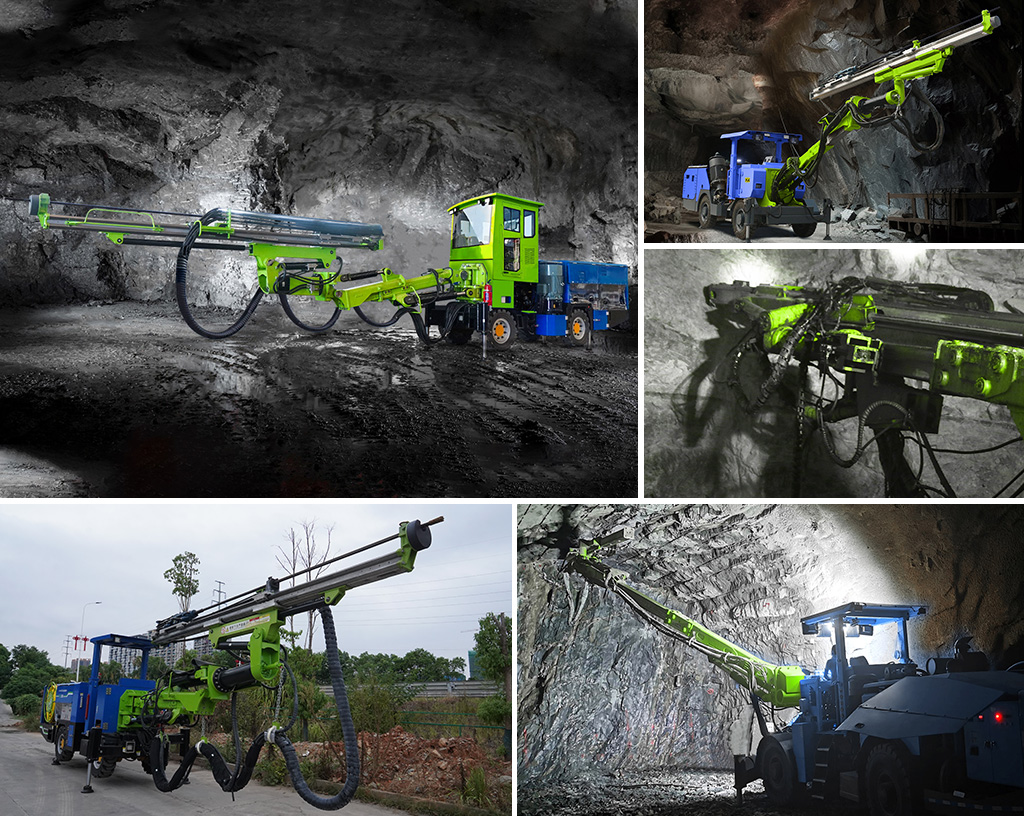

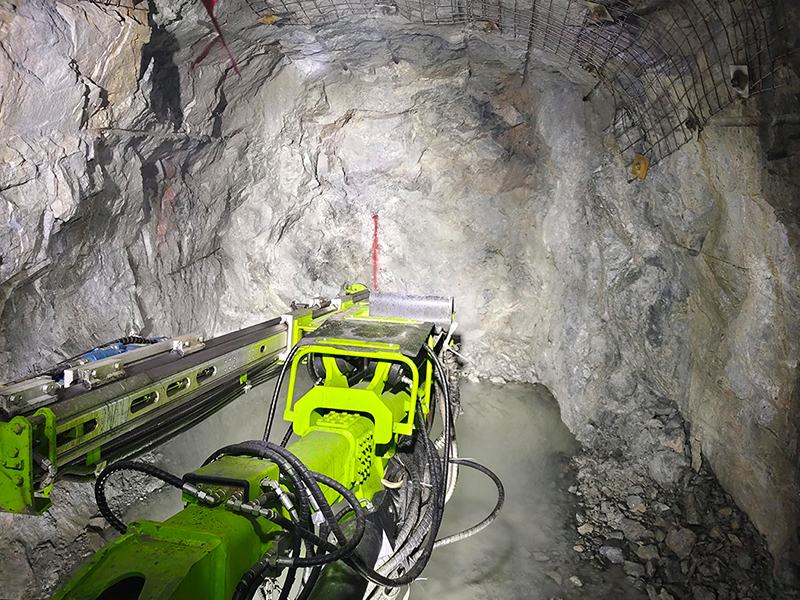

    ◆ Efficient and reliable: It adopts a double-triangle omnidirectional parallel telescopic arm design, which can be positioned quickly and accurately to meet the requirements of small-section tunnel operations. It also has an anti-drilling function to effectively reduce drilling tool consumption.


    ◆ Convenient operation: It adopts two operation modes, local operation and wireless remote control, so that the operator can more easily observe the drilling operation of the machine, and it is also equipped with an automatic drilling function to reduce the operator's work intensity.


    ◆ Good maneuverability: It adopts a four-wheel closed system and an articulated chassis, which has excellent maneuverability and a small turning radius.


    ◆ Electronic control technology: It has remote monitoring program, GPS positioning and MOTT data transmission and reception, drilling depth detection, water pump flow and pressure detection, electric anti-interference and other functions.


    ◆ Comfortable cab: There are two types of cabs: open and fully enclosed. The cab can be raised and lowered, with a wide field of vision and a high safety factor. The enclosed cab is also equipped with air conditioning to ensure a constant cab temperature, which can effectively reduce noise and dust hazards.

    Technical Parameter
    Excavator Specifications
    Machine ParametersValue
    Shipping dimensions (L × W × H)12500 × 1850 × 2300mm
    Quality of complete machine13000kg
    Engine power66kW
    Electrical installed power63.5kw
    Operating modeElectric construction + diesel emergency response
    Control modeWireless remote control + manual control
    Operating voltage380V/660V
    Operating range (W × H)2.8m×2.8m-6.6m×6.6m
    Chassis ParametersValue
    Chassis formArticulated engineering chassis
    Driving modeOne-way driving + wireless remote control
    Drive and steering modeFour-wheel drive, articulated steering
    Minimum ground clearance320mm
    Maximum climbing gradient36%
    Turning radius2994mm (inside) / 4670mm (outside)
    Maximum speed15km/h
    Approach/departure angle19°/20°
    Boom ParametersValue
    Boom modeDouble triangle + telescopic boom structure
    Thruster compensation1500mm
    Drilling ParametersValue
    Rock Drill Models18U/1838
    Power of rock drill18kW
    Length of drill pipe3700mm
    Maximum dilling depth3400mm
    Borehole diameter32mm-76mm
    Air Compressor ParametersValue
    power (output)3KW
    Air compressor flow rate700L/min
    Discharge pressure0.8MPa
    Pump ParametersValue
    power (output)3KW
    Flow rate83L/min
    Pressure1.2MPa
