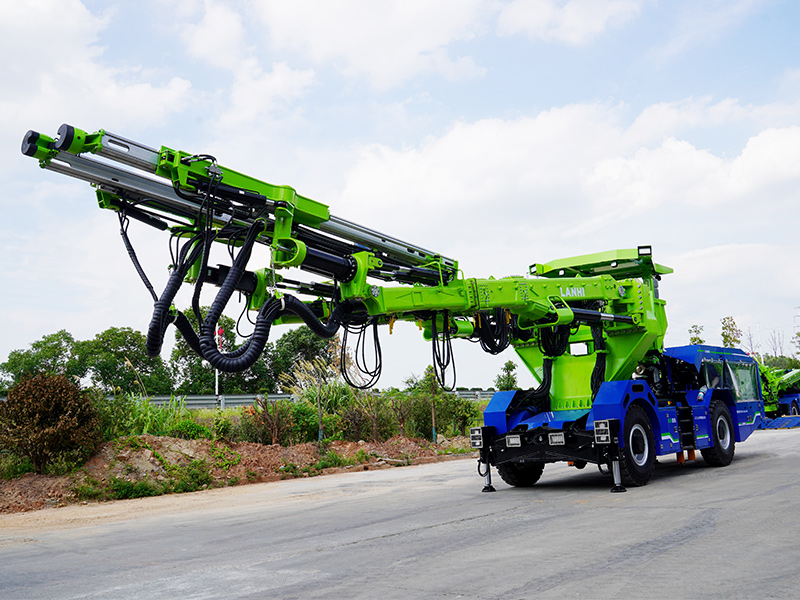

Products Description
◆Wide application range: It can meet the needs of full-section and multi-step synchronous excavation, solves the problem of "short" drill arm and inability of depth to meet step spacing of traditional rock drilling equipment, and can also meet the drilling of blasting holes, anchor holes, grouting holes, advanced geological drilling and other hole drilling operations.

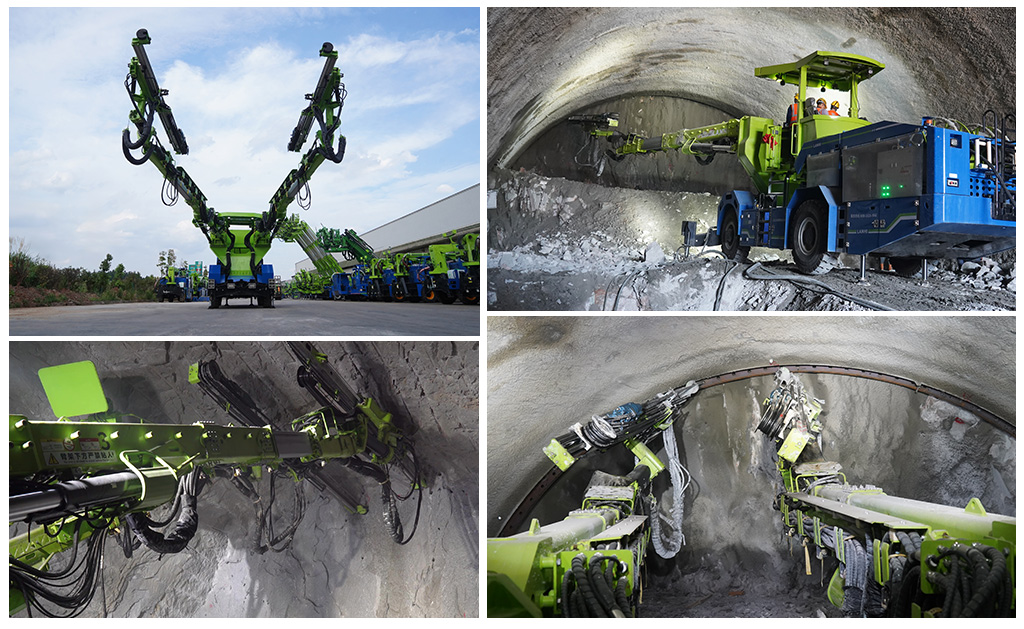

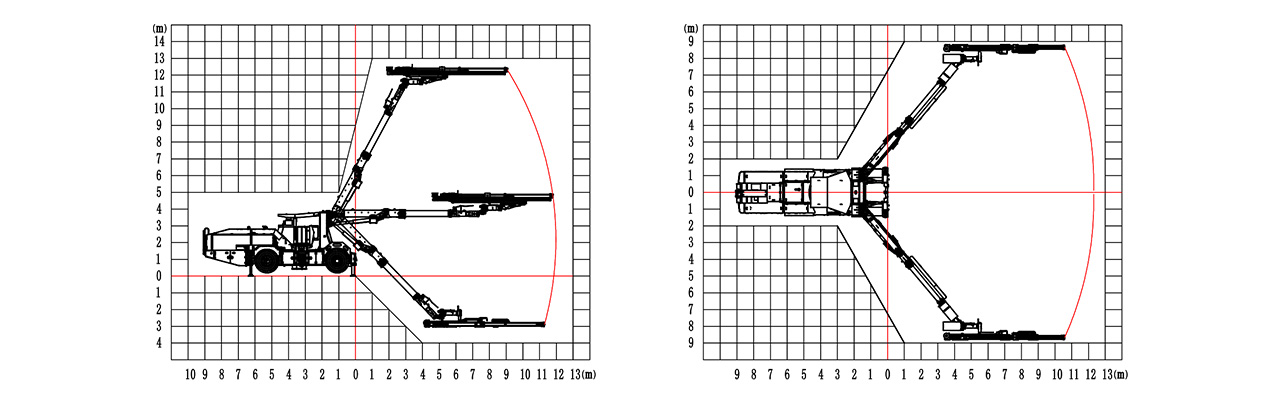

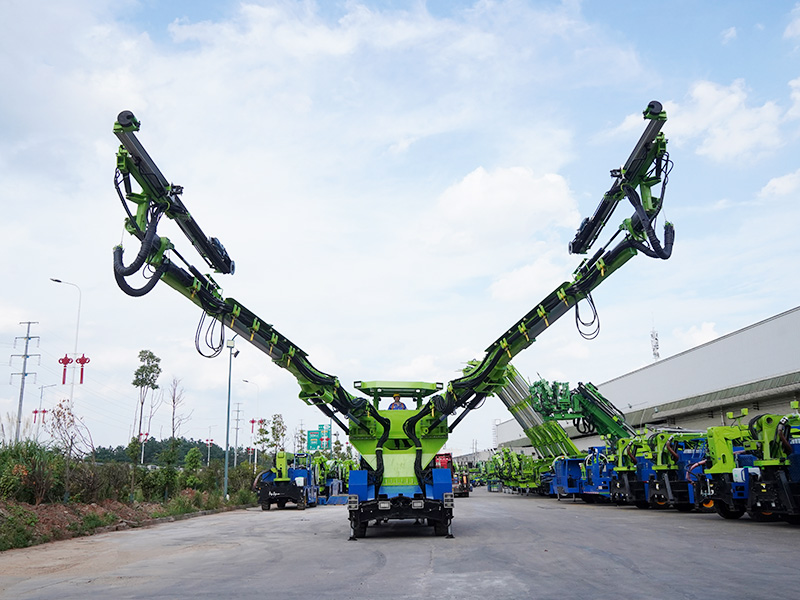

◆Large operating range: Maximum operating range (width × height): 16m × 12m, equipped with a retractable eagle-type boom seat, which can meet the needs of "large section" and adapt to the "small section" operating space.
◆Stable and efficient hydraulic control system: The whole machine adopts full hydraulic drive, three sets of independent rock drilling hydraulic systems, and the control does not interfere with each other. It is also equipped with automatic anti-drilling, automatic drilling at set depth, rod withdrawal and other functions. The whole machine has reliable performance, accurate positioning, fast drilling speed and low drilling tool consumption.
◆Easy to operate: It adopts two operating modes: local operation and wireless remote control. The operator can operate remotely by wireless remote control, which is convenient for the author to observe the operation status. It is also equipped with automatic drilling function to reduce the work intensity of the operator.
◆ Comfortable cab: There are two types of cabs: open and fully enclosed. The cab can be raised and lowered, with a wide field of vision and a high safety factor. The enclosed cab is equipped with air conditioning to ensure a constant cab temperature and effectively reduce noise and dust hazards.
◆ Electronic control technology: It has functions such as remote monitoring program, GPS positioning and MOTT data transmission and reception, drilling depth detection, water pump flow and pressure detection, and electrical anti-interference.
◆ Intelligence (optional): Construction visualization, realizing APP real-time positioning, real-time monitoring, troubleshooting, remote monitoring and other cloud management functions
Technical Parameter

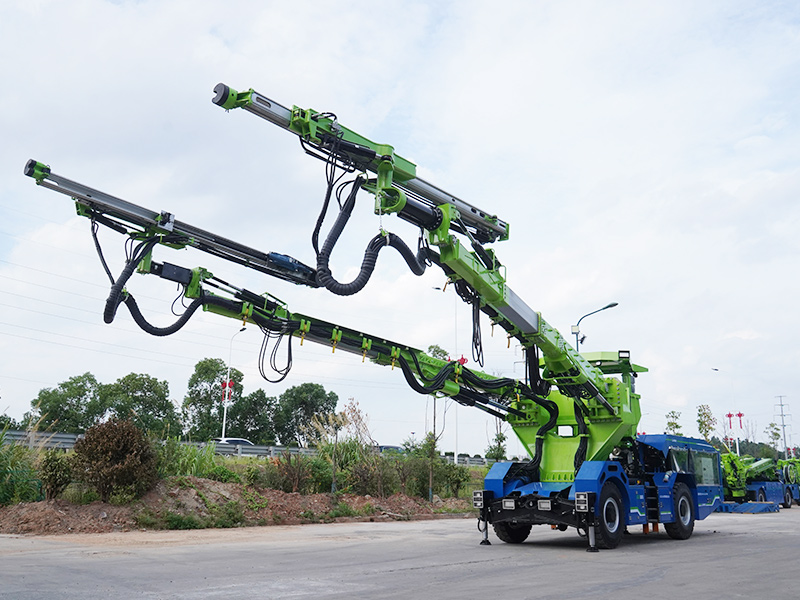

| Machine Parameters | Value |
|---|---|
| Shipping dimensions (L × W × H) | 18200 × 2900 × 3660mm |
| Quality of complete machine | 40t |
| Engine power | 125kW |
| Electrical installed power | 132kW |
| Operating mode | Electric construction + diesel emergency response |
| Control mode | Wireless remote control + manual control |
| Operating voltage | 380V |
| Operating range (W × H) | 16 × 12m |
| Chassis Parameters | Value |
| Chassis form | Articulated engineering chassis |
| Driving mode | One-way driving + wireless remote control |
| Drive and steering mode | Four-wheel drive, articulated steering |
| Minimum ground clearance | 320mm |
| Maximum climbing gradient | 38% |
| Maximum speed | 13.8km/h |
| Approach/departure angle | 21°/15° |
| Boom Parameters | Value |
| Boom mode | Double triangle + telescopic boom structure |
| Number of booms | 2 |
| Drilling Parameters | Value |
| Number of rock drills | 2 |
| Power of rock drill | 18kW |
| Maximum drilling depth | 5.1m |
| Borehole diameter | T38 Drill shank Φ41-Φ89mm T45 Drill shank Φ89-Φ102mm |
| Air Compressor Parameters | Value |
| Air displacement | 1.6m³/min |
| Discharge pressure | 8bar |
| Pump Parameters | Value |
| Flow rate | 12m³ /h |
| Pressure | 12bar |
