Products Description

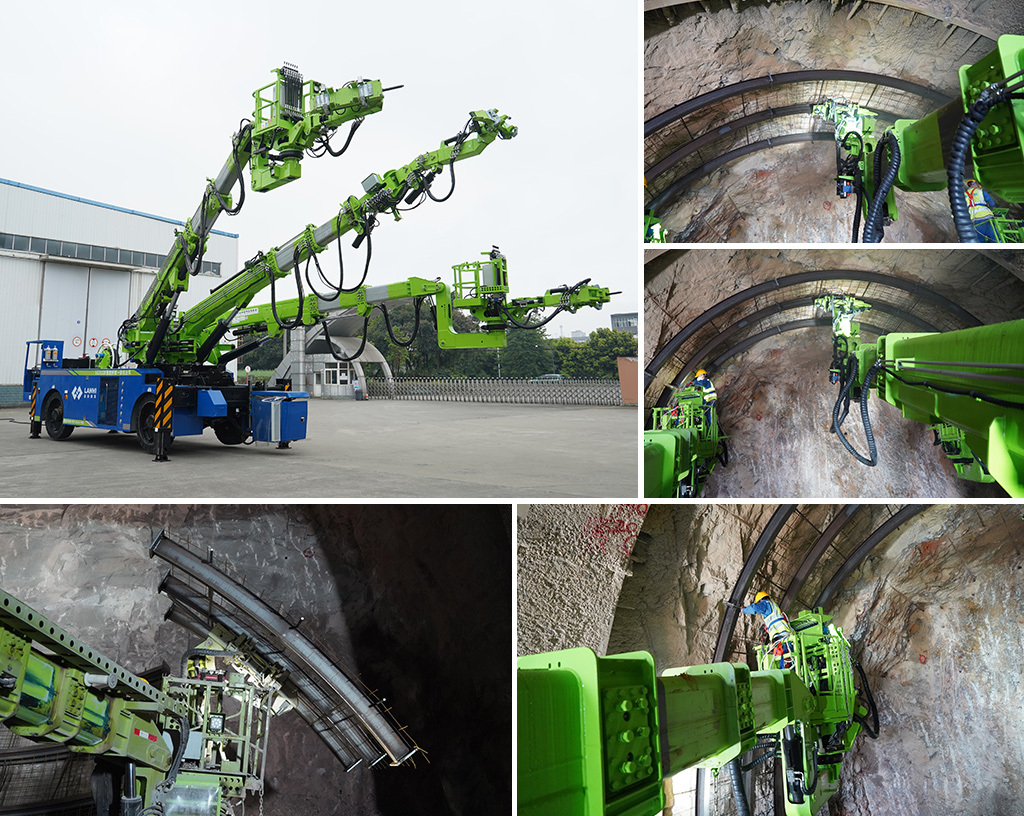

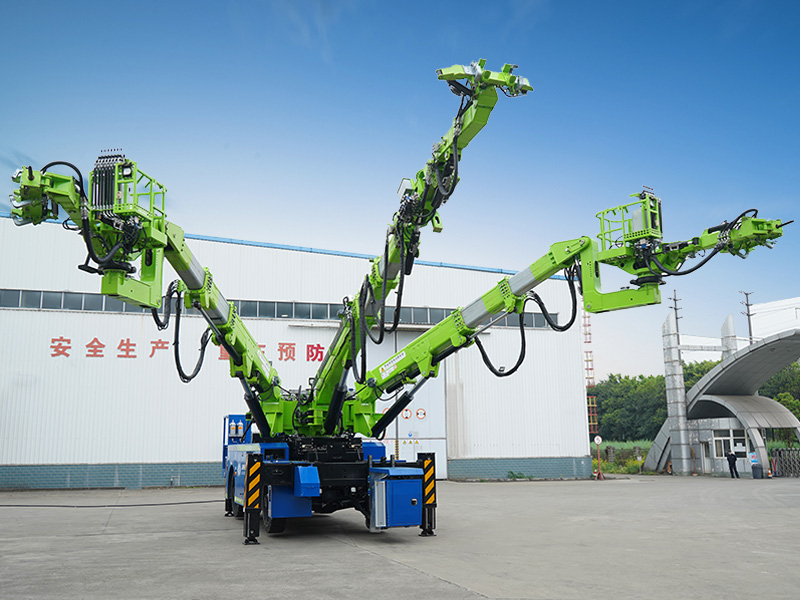

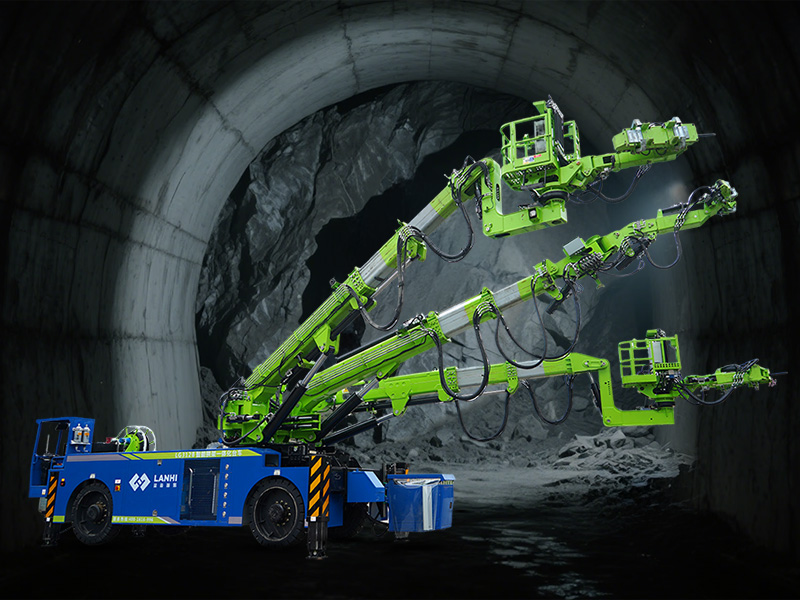

◆ Multifunctional configuration: three arms, three hanging baskets, three grippers, with built-in breaker and welder, can be used for under-excavation and welding operations, with diversified functions.
◆ Safe and time-saving: The maximum lifting force of the middle arm is 3 tons, remote control operation, combined with multi-frame prefabrication and folding arch installation, the frame can be completed in about 1 hour, effectively improving work efficiency and safety.
◆ Saving personnel: 3-4 people can complete measurement and detection, under-excavation, and arch installation.

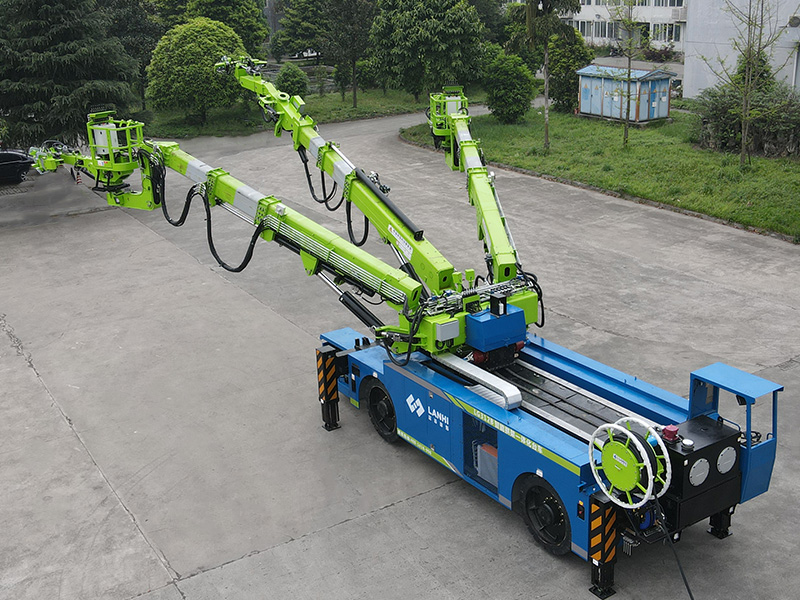

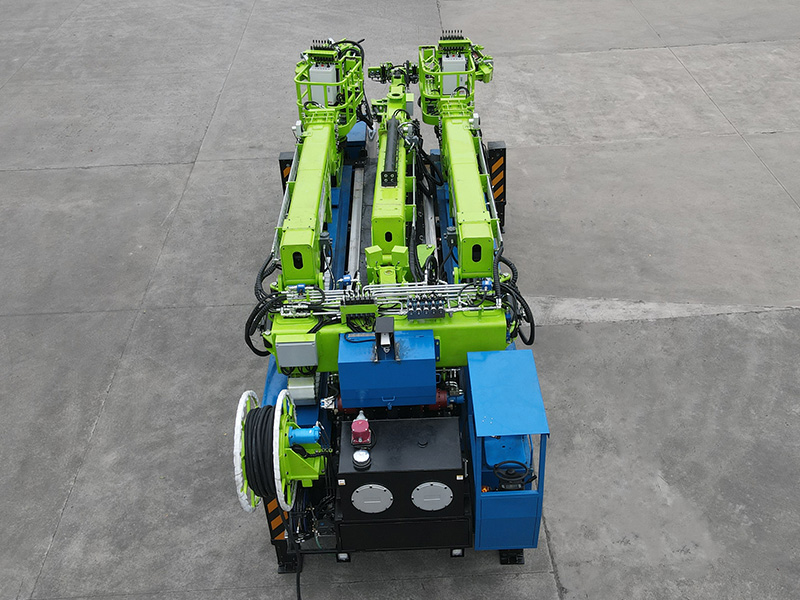

◆ Auxiliary functions: two-way driving, four-wheel steering, diesel-electric dual motion, three-arm frame adopts sliding structure, remote control operation, and the operator is easier to use.
◆ Scope of application: Meet the full-section, step method operation and arch installation and other I-shaped operations.
◆ Intelligent (optional): Construction visualization, realize APP real-time positioning, real-time monitoring, troubleshooting, simultaneous command, remote monitoring and many other cloud management functions.
Technical Parameter
| Device Parameters | |
|---|---|
| Transport dimensions (L * W * H) | 10500×3100×3400mm |
| Total weight | 35.5t |
| Engine power | 133kW |
| Installed electrical power | 96.5kW |
| Operating mode | Electric construction + diesel-powered emergency |
| Control mode | Wireless remote control + manual control |
| Operating voltage | 380V |
| Operating range (width x height) | 18 x 12.5m |
| Chassis Parameters | |
| Chassis form | Operating chassis |
| Driving mode | Bidirectional driving (Dual cabs) |
| Driving and steering methods | Four-wheel drive, four-wheel steering |
| Minimum ground clearance | 440mm |
| Maximum grade | 32% |
| Turning radius | 14m (two wheels) 7m (four wheels) |
| Maximum speed | 25km/h |
| Approach angle/departure angle | 16"/19" |
| Arm Support Parameters | |
| Arm support mode | Two stage telescopic |
| Arm support quantity | 3 |
| Hanging basket mode | Expandable |
| Number of hanging baskets | 3 |
| Number of grippers | 3 |
| Maximum lifting capacity of middle arm | 3t |
| Maximum lifting capacity of left and right arms | 1.5t |
| Annex | |
| Welding machines | 3 sets |
| Breaking hammers | 2 sets |
| Optional Devices | |
| Three remote controls/one remote control | Unidirectional driving |
| Breaker | Front wheel steering |
| Electric Welding Machine | Combustible Gas Detector |
| Middle arm bearing capacity of 1.5t | Hole cleaning device |
