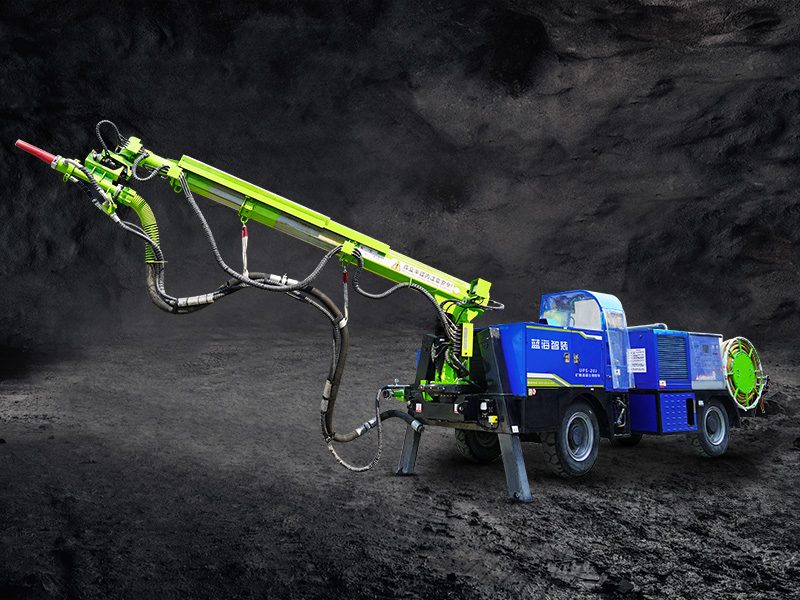

UPS-20J Mining Robot Shotcrete Machine

  • Maximum spraying volume:20m³/h
  • Operating range (W×H):3m×3m - 15m×8.5m

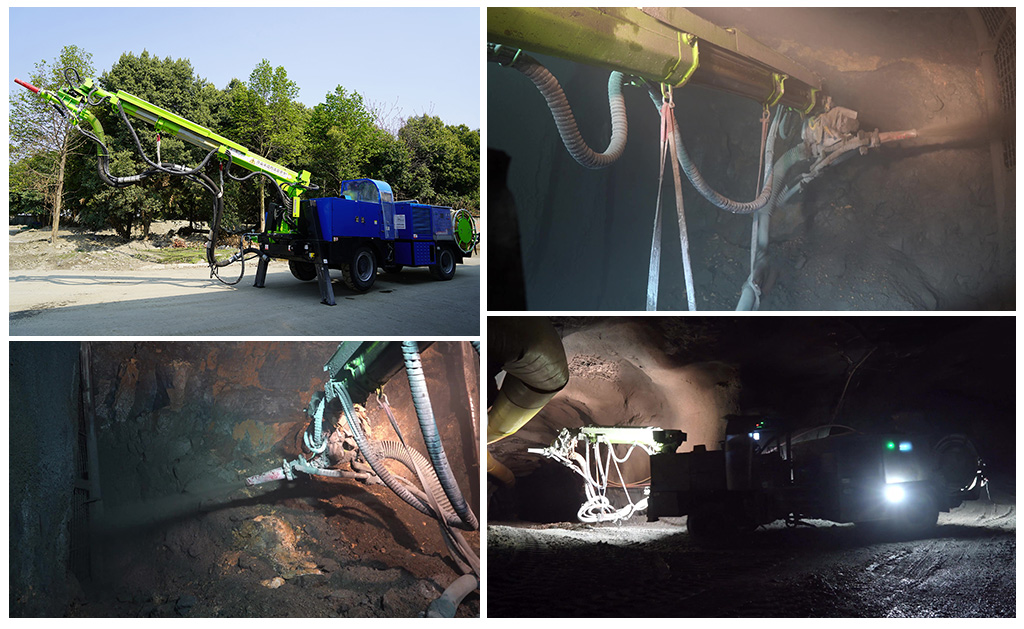

  • The UPS-20J Mining Robot Shotcrete Machine is purpose-built for modern mining operations in small and medium-sized tunnels. The maximum spraying capacity is 20 m³/h, It is widely used in concrete spraying support operations in small and medium-sized underground projects such as mines, water diversion tunnels, and inclined shafts.
    Send Inquiry
    Description
    Parameter
    Products Description


    ◆ Maximum Shotcrete Volume: Capable of achieving 20m³/h, with pipes that are resistant to blockage, low rebound,  stable and reliable performance, ensuring high efficiency in shotcreting operations with reduced risk of pipe blockage.


    ◆ Reduce concrete consumption:lt solves the problem that traditional small wet spraying machines cannot meet the needs of concrete spraying in large tunnels, improves construction efficiency, reduces concrete consumption,and effectively guarantees construction quality.


    ◆ Wireless Remote-Controlled Boom: Facilitates precise and convenient operation.


    ◆ Articulated Engineering Chassis : Offers small turning radius and high climbing gradient, suitable for versatile applications.


    ◆ New generation of concrete spraying equipment:Adopting the new generation of automotive chassis technology, low failure rate, and flexible transition, making it easy to enter and exit construction sites.


    ◆ Energy Saving and Environmentally Friendly: Dual-power operation (diesel-electric), supporting electric construction and diesel for emergencies.


    ◆ Low Operating Costs: The entire machine structure has been optimized and upgraded, resulting in low failure rates; high compatibility of parts and consumables leads to lower operating costs.


    Technical Parameter

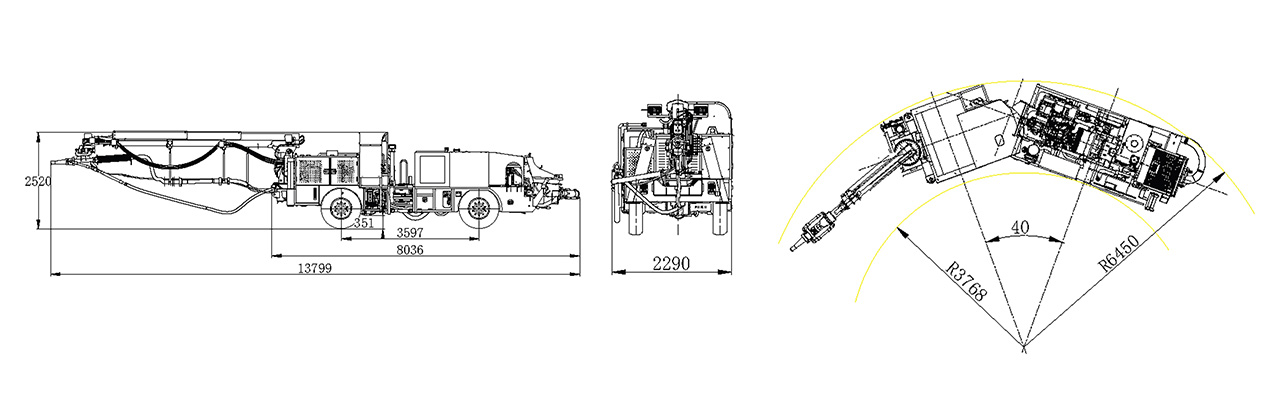

    Maximum overall dimension (L×W×H)7900×2290×2670mm
    Self-weight12.5t
    Operating modeElectric system + diesel engine emergency response system
    Operating range (W×H)3m×3m - 15m×8.5m
    Maximum shotcreting volume20m³/h
    Control modeThe boom adopts wireless remote control
    Chassis modelHeavy-duty articulated engineering chassis
    Power110kW
    Operating voltage380V/660V
    Maximum travel speed13.5km/h
    Maximum gradeability25°
    Minimum outer turning radius6450mm
    Minimum inside turning radius37680 mm
    Minimum ground clearance300mm
    Maximum size of sprayed aggregate16mm
    Hopper capacity0.35m³
    Air compressor displacement9.5m³/min
    Working pressure of air compressor0.5MPa
