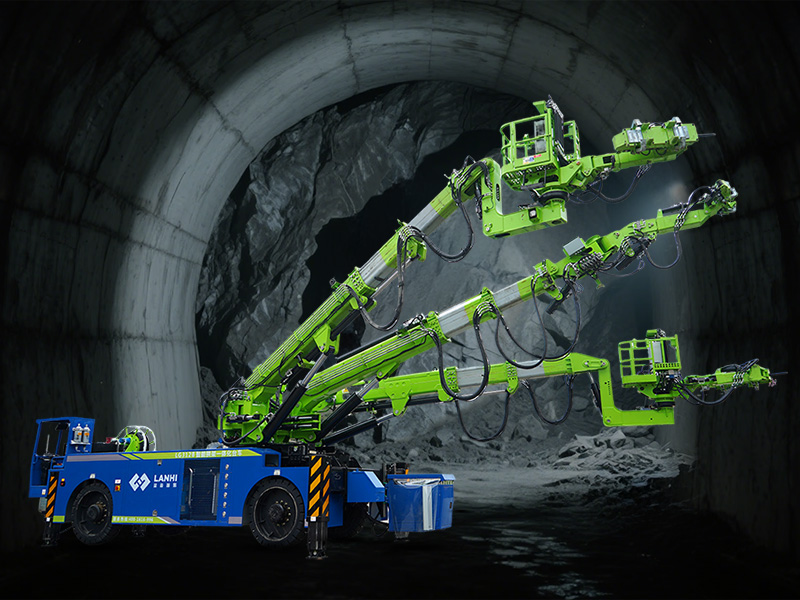

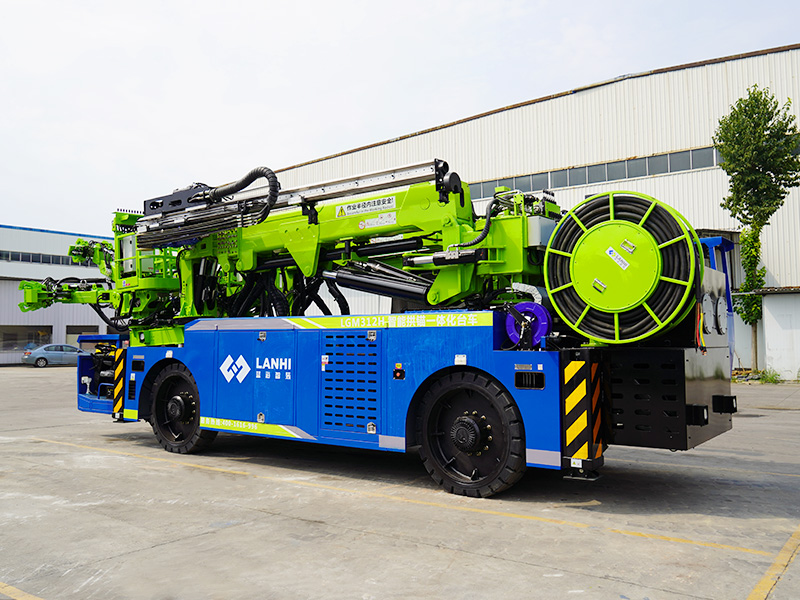

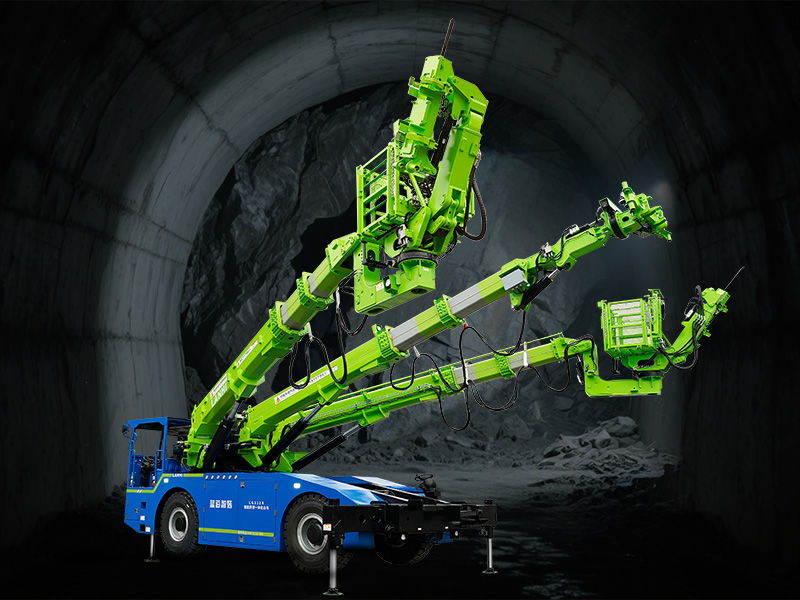

Products Description
◆ Arch-anchor inteoration: intearaies measwrement and olacement. underexcavaion operaion. arch instalaion, anchor netinstalaion, advance supor. svslem anho construction, anchor grouting (optional) and other functions.
◆ Safe and time-saving: Fealuring athre am,three-grippe,and three-basket structure, the maximum liting capacy ofthe midle amis 3 tons, remote control operaion combined with mult-frame prefabrication and folding arch installation,the erecion can be completed in about 1 hour, efecively improving work eficiency and safety.

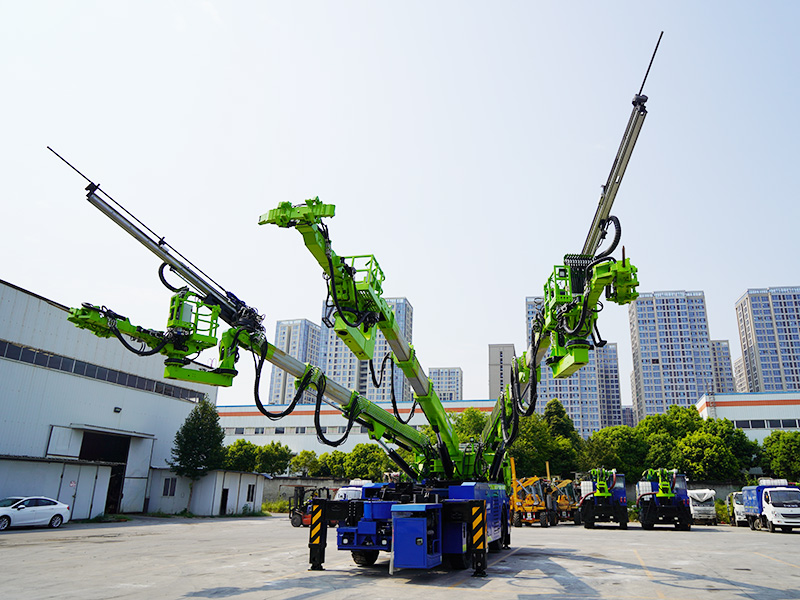

◆ Double anchor arm: The maximum drling depth can reach 4.5 meters, and the le and rightarms can perfomm locking foot,system anchor and advance anchor operaions at the same time.
◆ Grouting function: The equipment is equipped with a grouing system, and grouting can be caried out quicky afer the anchor construction operaion
◆ Save manpower: 4 people can complete the arch installation, system anchor and grouting operations.
◆ Auxiliary functions: two-way driving, four-wheel steering, equipped with a breaker" and a welder, can perform under-digging and welding operations, making it easier for operators to use.
◆ Auxiliary functions: two-way driving,fourwheel stering, Am support ful siding structure, equipped with a breaker and awelder,can perfom under-digging and welding operations, making it easier for operators to use.
◆ Intelligence (optional): Construction visualization, realizing APP real-time positioning, real-time monitoring,troubleshooting,simultaneous instruction interpretation, remote monitoring and many other cloud management functions.
Technical Parameter
| Parameter | Value |
|---|---|
| Device parameters | |
| Transport dimensions (L * W * H) | 10850×3700×3750mm |
| Total weight | 41t |
| Engine power | 133kW (National IV) |
| Installed electrical power | 92kW |
| Operating mode | Electric construction + diesel-powered walking and emergency |
| Control mode | Wireless remote control + manual control |
| Operating voltage | 380V |
| Operating range (width x height) | 18×12.5m |
| Chassis Parameters | |
| Chassis form | Operating chassis |
| Driving mode | Bidirectional driving (front and rear dual cabs) |
| Driving and steering methods | Four-wheel drive, four-wheel steering |
| Minimum ground clearance | 440mm |
| Maximum grade | 32% |
| Turning radius | 14m (two wheels)/7m (four wheels) |
| Maximum speed | 25km/h |
| Approach angle/departure angle | 16°/19° |
| Arm support parameters | |
| Arm support mode | Two stage telescopic |
| Arm support quantity | 3 |
| Hanging basket mode | Expandable |
| Number of hanging baskets | 3 |
| Number of grippers | 3 |
| Maximum lifting capacity of middle arm | 3t |
| Maximum lifting capacity of left and right arms | 1.5t |
| Rock drilling parameters | |
| Power of rock drills | 18kW |
| Maximum drilling depth | 4.5m |
| Drilling diameter | 110mm |
| Drilling speed | 2m/min |
| Maximum horizontal lifting height | 10.5m |
| Maximum Width | 16m |
| Optional Devices | |
| Breaking hammers | 2 sets |
