Products Description

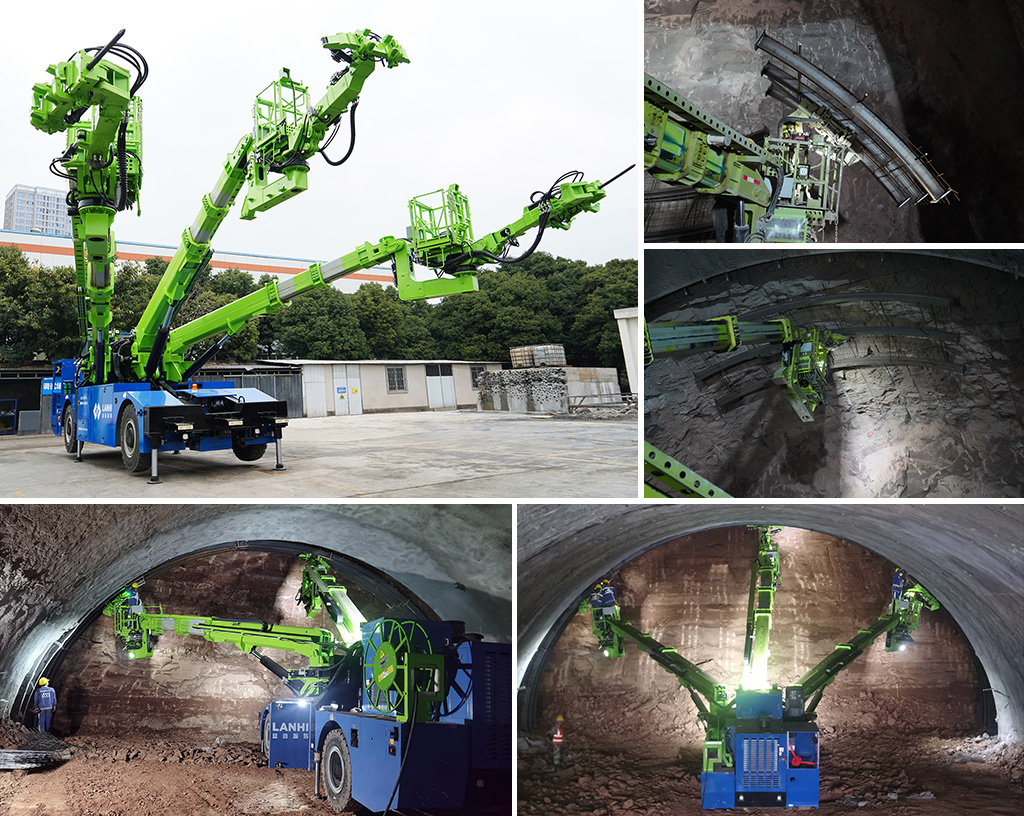

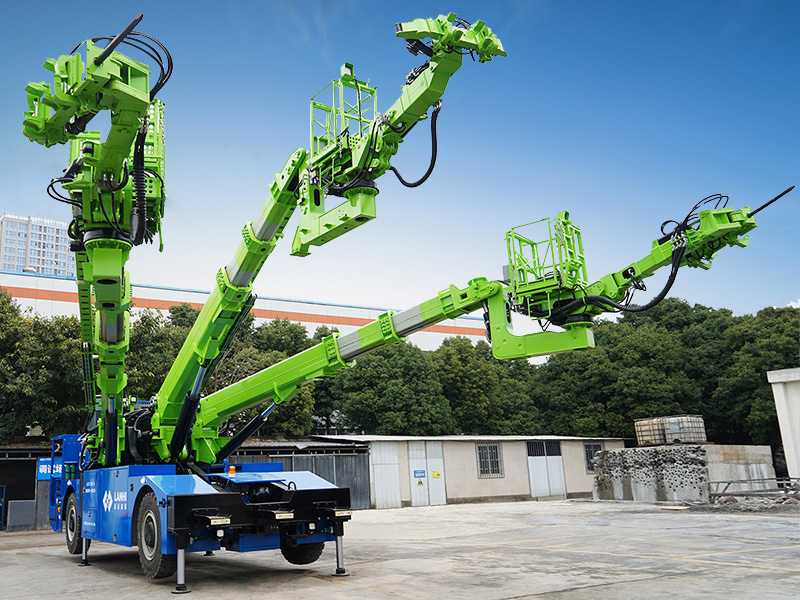

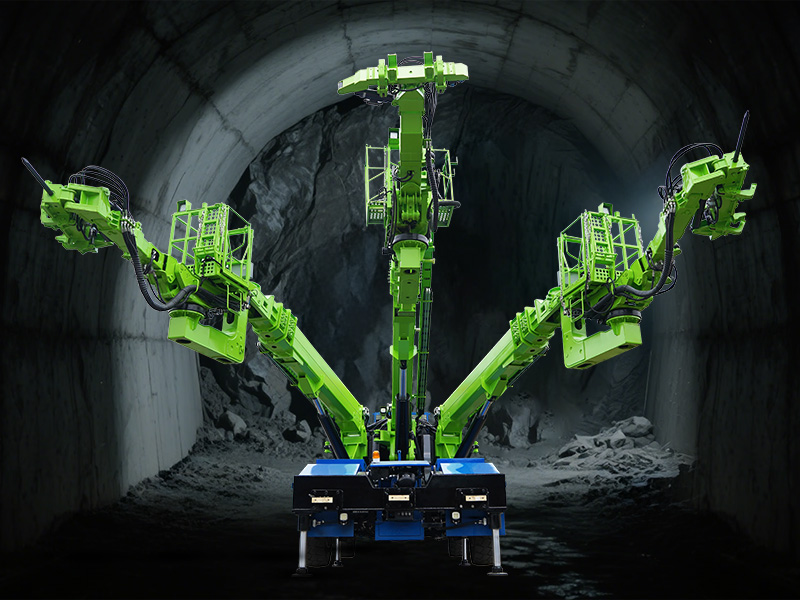

◆ Multi-functional configuration: Three arms, three baskets, and three grippers, equipped with a crushing hammer and welder, optional hole-cleaning device for excavation and welding operations, offering diverse functionalities.
◆ Expandable baskets: Large space, high safety, suitable for anchor installation and auxiliary loading operations.
◆ Time-saving and safe: Middle arm with a maximum lifting capacity of 3 tons, remote control operation, combined with prefabricated and folding arch installation, erecting within approximately 1 hour, effectively enhancing operational efficiency and safety.
◆ Manpower saving: Measurement, excavation handling, and arch installation can be completed by 3-4 personnel.
◆ Auxiliary functions: Bi-directional driving, four-wheel steering, dual diesel-electric power, remote control + local operation, user-friendly operation.
◆ Adaptability: Suitable for full-section, step method operations, and arch installation processes.
◆ Intelligence (optional): Construction visualization, featuring real-time positioning via an app, live monitoring, hazard detection, simultaneous interpretation of commands, remote monitoring, and other cloud management functions.
Technical Parameter
| Device Parameters | |
|---|---|
| Transport dimensions (L X W X H) | 11800×3200×3200mm |
| Total weight | 28t |
| Engine power | 138.5kW |
| Installed electrical power | 87.5kW |
| Operating mode | Electric construction + diesel-powered emergency |
| Control mode | Wireless remote control + manual control |
| Operating voltage | 380V |
| Operating range (width x height) | 18x12.5m |
| Chassis Parameters | |
| Chassis form | Operating chassis |
| Driving mode | Bidirectional driving (Dual cabs) |
| Driving and steering methods | Four-wheel drive, four-wheel steering |
| Minimum ground clearance | 400mm |
| Maximum grade | 32% |
| Turning radius | 15m (two wheels) 8m (four wheels) |
| Maximum speed | 25km/h |
| Approach angle/departure angle | 17"/15" |
| Arm Support Parameters | |
| Arm support mode | Two stage telescopic |
| Arm support quantity | 3 |
| Hanging basket mode | Expandable |
| Number of hanging baskets | 3 |
| Number of grippers | 3 |
| Maximum lifting capacity of middle arm | 3t |
| Maximum lifting capacity of left and right arms | 1.5t |
| Annex | |
| Welding machines | 3 sets |
| Breaking hammers | 2 sets |
| Optional Devices | |
| Three remote controls/one remote control | Unidirectional driving |
| Breaker | Front wheel steering |
| Electric Welding Machine | Combustible Gas Detector |
| Middle arm bearing capacity of 1.5t | Hole cleaning device |
