WJS-1.5 underground diesel Load-Haul-Dump (LHD) loader

Bucket Capacity： 1.5 m³

Rated Load Capacity：3 t

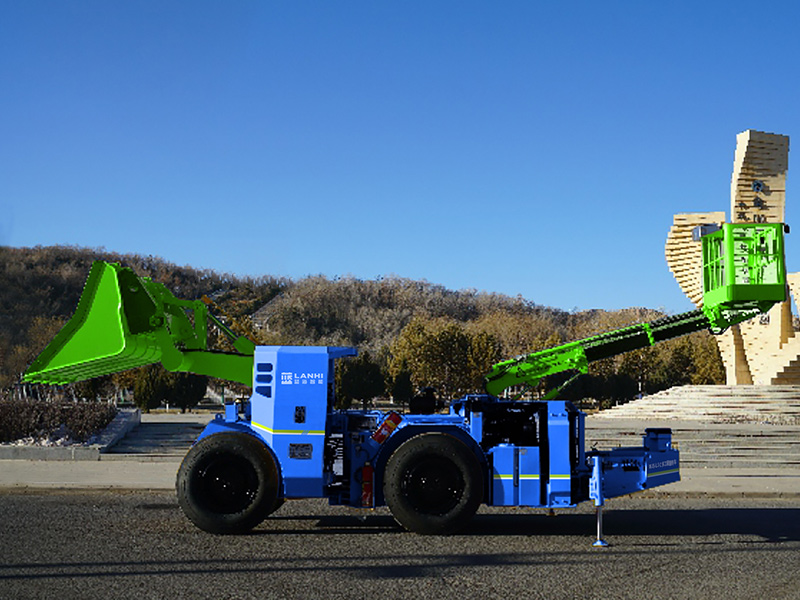

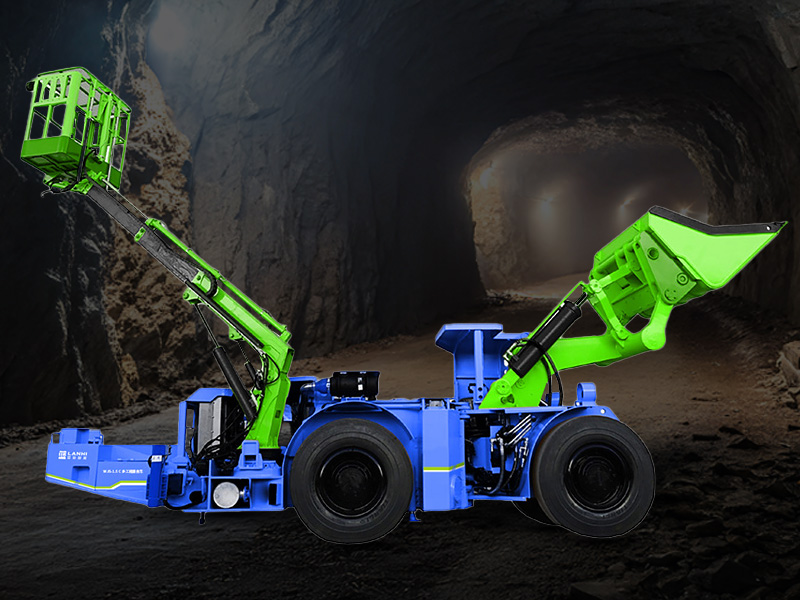

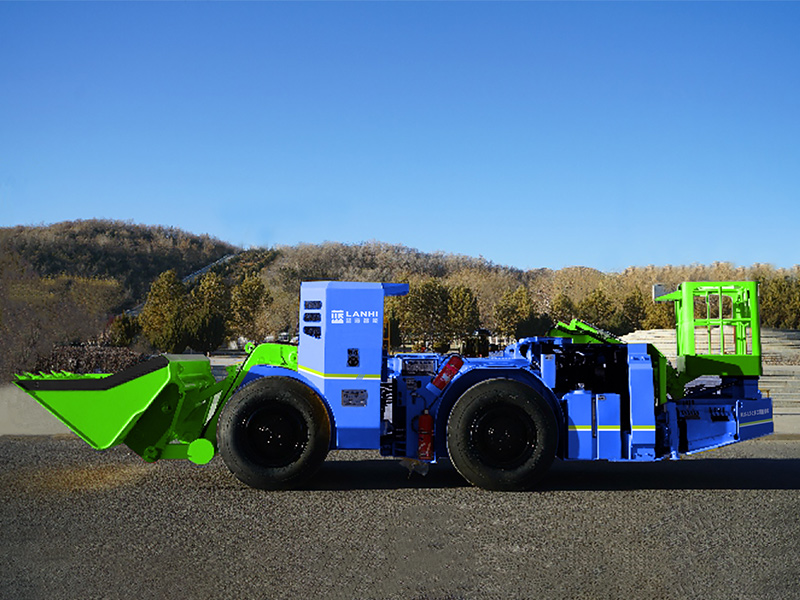

The WJS-1.5 underground diesel Load-Haul-Dump (LHD) loader is a multifunctional piece of equipment specifically designed for underground mining operations. Featuring a low-profile body and central articulation, it is capable of performing a variety of tasks. The front end allows for quick switching between a bucket and forklift attachment, while the rear is equipped with a telescopic crane system. When the front is fitted with a bucket, it can handle a loading capacity of 3 tons, suitable for transporting sand and gravel materials, with a heaped bucket capacity of up to 1.5 cubic meters.

Send Inquiry

Description

Parameter

Products Description

Main Technical Features:

◆ Central articulated structure with a small turning radius.

◆ CAN bus communication technology for real-time monitoring of vehicle operating status, fault diagnostics, and maintenance reminders.

◆ Multiple optional configurations available to meet specific customer needs.

Technical Parameter

Basic Dimensions
Length	8600 mm
Width	1850mm
Height	2340mm
Rear Axle Oscillation Angle	±8°
Boom Raising Time	7.3s
Boom Lowering Time	6.2s
Bucket Dumping Time	8.2s
Bucket Retracting Time	6.2s
Steering Angle	±40°
Turning Radius (Inner)	2600mm
Turning Radius (Outer)	6500mm
Production Capacity
Bucket Capacity (SAE Heaped)	1.5m³
Rated Load Capacity	3000kg
Maximum Traction Force	104 kN
Gradeability	25%, 3kM/h
Travel Speeds (on horizontal road, fully loaded)
Gear I (Forward/Reverse)	3.3km/h
Gear II (Forward/Reverse)	6.7km/h
Gear III (Forward/Reverse)	11.3km/h
Gear IV (Forward/Reverse)	18.5 km/h
Machine Weight
Self weight of the whole machine	14300 kg
Fully loaded gross weight	17300 kg
