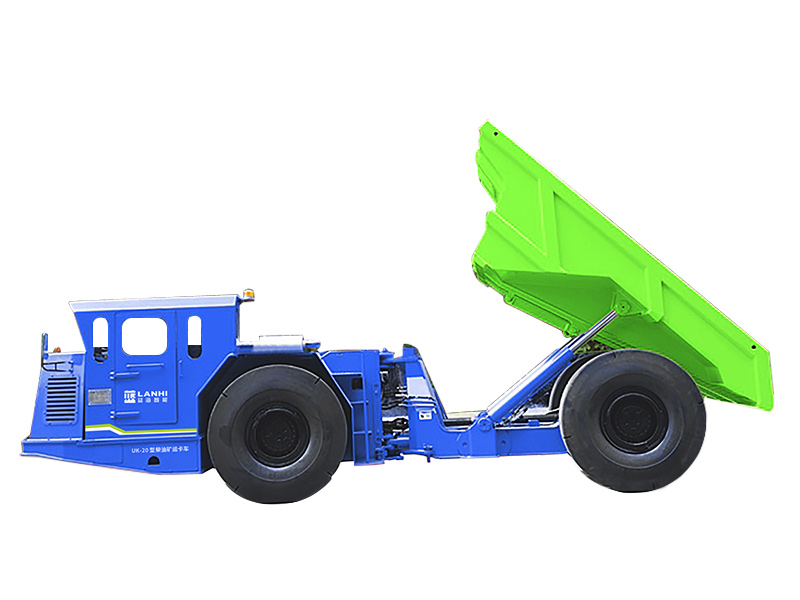

Products Description
Main Technical Features:
◆ Centrally articulated structure with fully hydraulic power steering, providing a small turning radius.
◆ Constructed with high-quality alloy steel, utilizing advanced machining and heat treatment processes, and featuring innovative design to ensure a strong and durable vehicle structure.
◆ Equipped with CAN bus communication technology for fault self-diagnosis and real-time monitoring of vehicle operating status, ensuring system operation safety.
◆ Certified with FOPS/ROPS, equipped with a fully enclosed air-conditioned cab, and fitted with a rear-view camera to ensure operational safety.
Technical Parameter
| Basic Dimensions | |
| Length | 9200mm |
| Width | 2900mm |
| Height | 2421mm |
| Boom Raising Time | 19s |
| Boom Lowering Time | 20s |
| Steering Angle | 65° |
| Maximum lifting height | 4852mm |
| Dumping Angle | ±42° |
| Turning Radius (Inner) | 5234mm |
| Turning Radius (Outer) | 9000mm |
| Production Capacity | |
| Bucket Capacity (SAE Heaped) | 12.5m³ |
| Rated Load Capacity | 25,000kg |
| Maximum Traction Force | 320kN |
| Gradeability | 25%,3.3km/h |
| Machine Weight | |
| Self weight of the whole machine | 25500kg |
| Fully loaded gross weight | 25000kg |
