Products Description

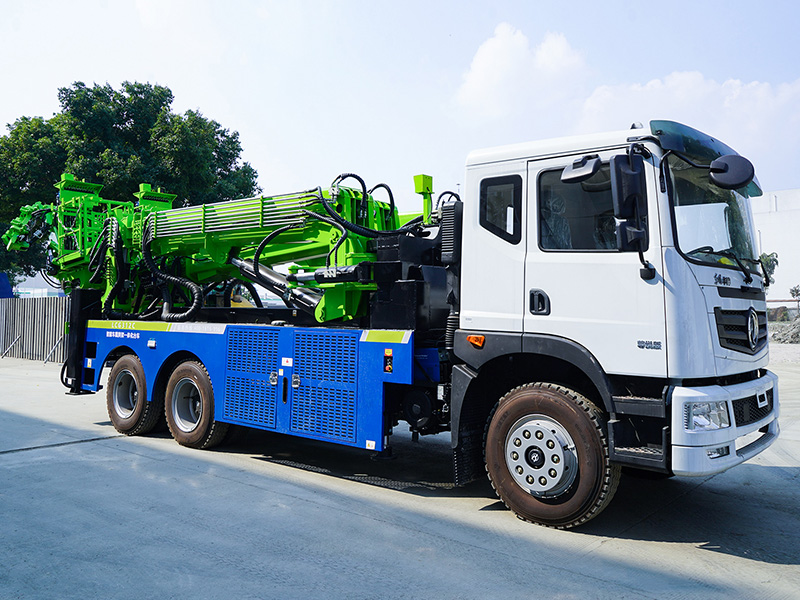

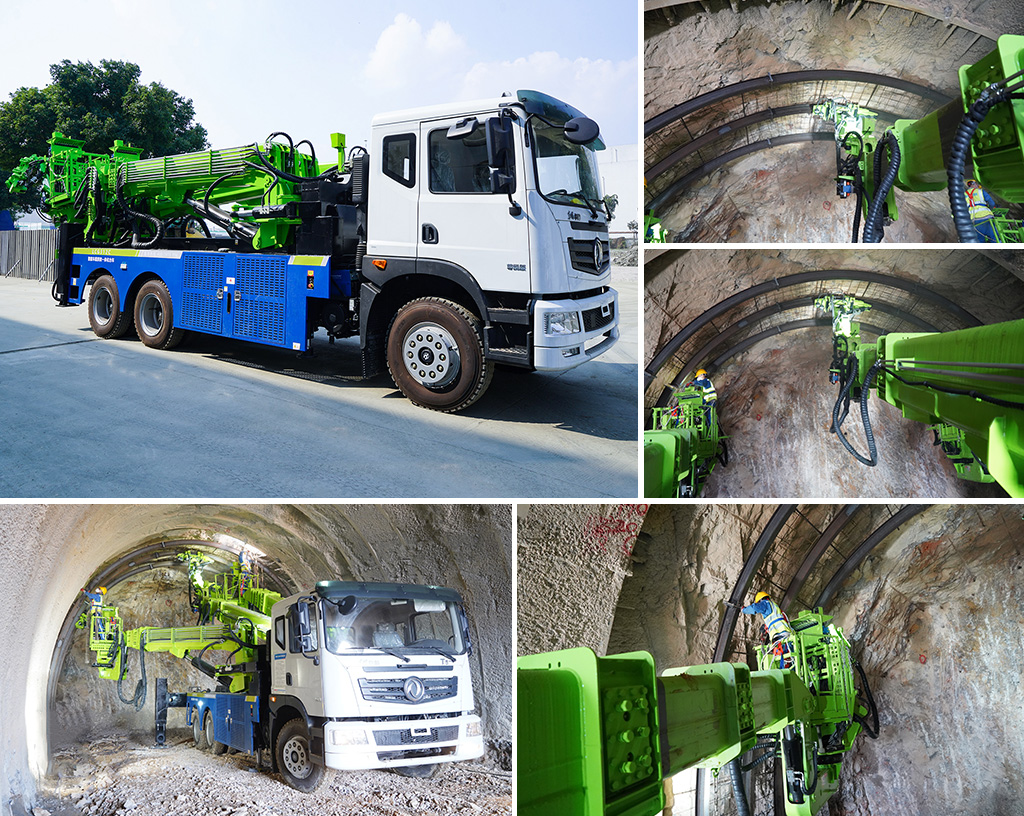

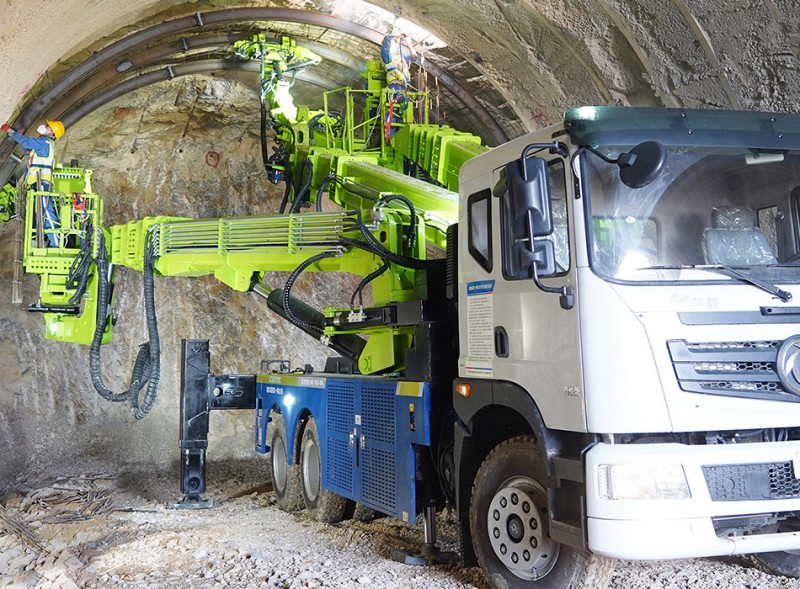

◆ High Efficiency: Equipped with three arms and three grippers, multi-degree-of-freedom manipulators, with a maximum single-arm lifting capacity of 1.5 tons. It meets the requirements for prefabricated arch installation, various step method operations, and arch positioning adjustments. All construction processes for erecting the arch can be completed in approximately 1 hour.
◆ Reduced Manpower: The entire construction operation can be completed by 3-4 people, whereas traditional methods require 8 or more workers.

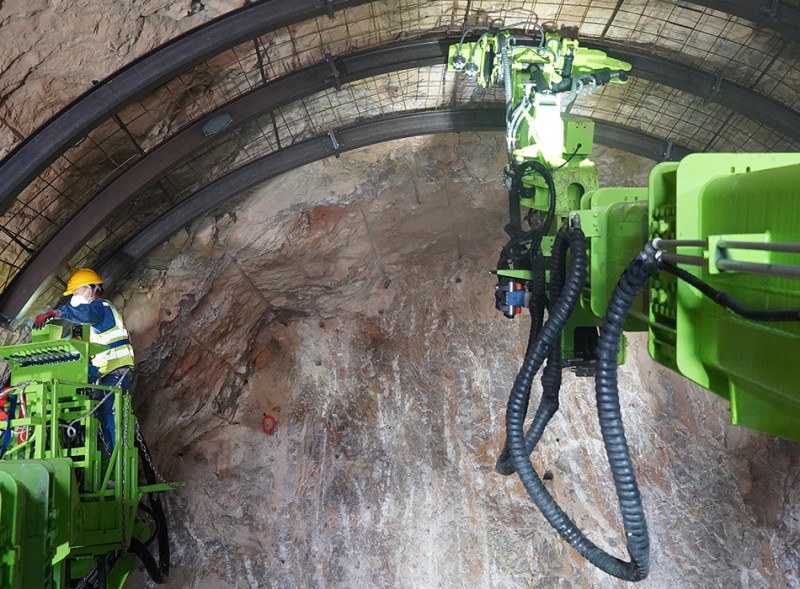

◆ Prefabricated Arch Installation: Utilizing our company's independently developed patented technology for multiple prefabricated arches produced outside the tunnel, which reduces the time and risk of dangerous operations and significantly improves construction efficiency.
◆ Additional Options: Users can select certain features based on their needs, such as an electric drive hydraulic system, a breaker for excavation operations, and a welder.
◆ Equipment Informatization (Optional): Includes cluster management, positioning functions, video surveillance, intercom functionality, pre/alarm functions, data management features, tunnel BIM technology and digital twins, construction report management, tunnel contour scanning, and remote control.
Technical Parameter
| Device Parameters | |
|---|---|
| Transport dimensions (L * W * H) | 10500×3100×3400mm |
| Total weight | 30t |
| Engine power | 176kW |
| Installed electrical power | 80kW |
| Operating mode | Electric construction + diesel-powered emergency |
| Control mode | Wireless remote control + manual control |
| Operating voltage | 380V |
| Operating range (width x height) | 18 x 12m |
| Chassis Parameters | |
| Chassis form | Operating chassis |
| Driving mode | Bidirectional driving (Dual cabs) |
| Driving and steering methods | Four-wheel drive, four-wheel steering |
| Minimum ground clearance | 320mm |
| Maximum grade | 40% |
| Turning radius | 9.5m (two wheels) |
| Maximum speed | 50km/h |
| Approach angle/departure angle | 25"/16" |

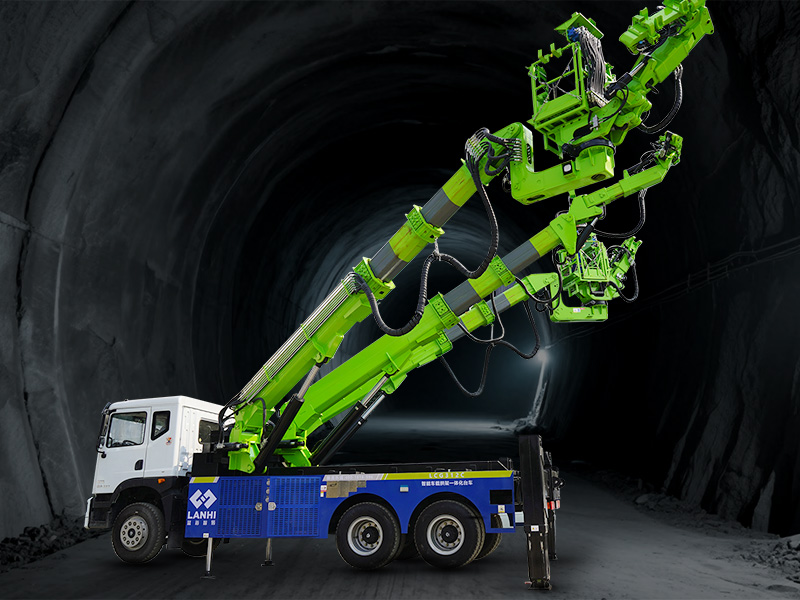

| Arm Support Parameters | |
| Arm support mode | Two stage telescopic |
| Arm support quantity | 3 |
| Hanging basket mode | Expandable |
| Number of hanging baskets | 2 |
| Number of grippers | 3 |
| Maximum lifting capacity of middle arm | 1.5t |
| Maximum lifting capacity of left and right arms | 1.5t |
| Annex | |
| Welding machines | 3 sets |
| Breaking hammers | / |
| Optional Devices | |
| Three remote controls/one remote control | Unidirectional driving |
| Breaker | Front wheel steering |
| Electric Welding Machine | Combustible Gas Detector |
| Middle arm bearing capacity of 3t | Hole cleaning device |
